Photoelectric Sensor R58ACR1D
Photoelectric Sensor
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | -10 |
| Cable length (m) | 2 |
| Design | Rectangular |

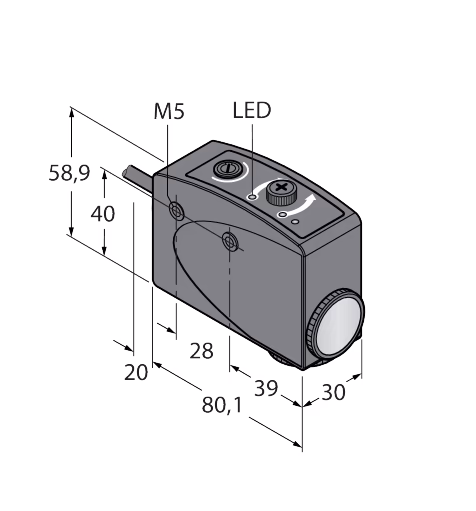

| Dimensions | 80.1 mm x 30 mm x 58.9 mm |
| Electrical output | Cable |
| Focal distance (mm) | 10 |
| Function | Inspection sensor |
| Housing material | Metal |
| Housing quality | Zinc Alloy Die-Cast |
| Light type | Red |
| Max. range (mm) | 10 |
| Operating mode | Contrast sensor |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Setting option | Potentiometer |
| Special features | keep/defer |
| Switching element function | NO contact |
| Switching frequency (kHz) | 10 |
