Photoelectric Sensor SLE10B6VY W/30
Photoelectric Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Cable length (m) | 9 |
| Design | Fork |

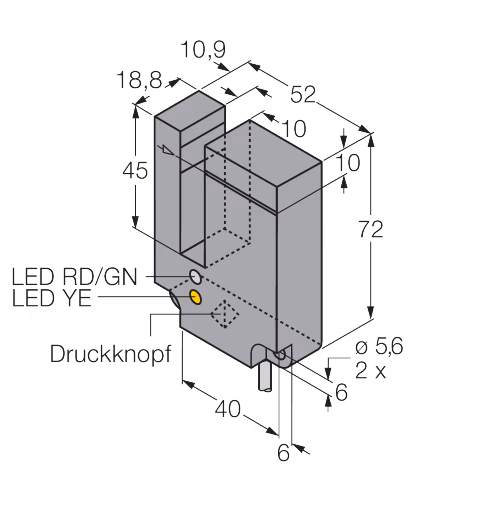

| Dimensions | 72 mm x 18.8 mm x 52 mm |
| Electrical output | Cable |
| Function | Slot sensor |
| Housing material | Plastic |
| Housing quality | Thermoplastic material |
| Light type | Red |
| Max. range (mm) | 10 |
| Operating mode | Transmitter/receiver pair |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Setting option | Push Button, Remote Teach |
| Switching element function | NO contact |
| Switching frequency (kHz) | 3.3 |
| Wavelength (nm) | 680 |
