Photoelectric Sensor SM312CVQD
Photoelectric Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Connector type | M12 × 1 |
| Design | Rectangular with thread |

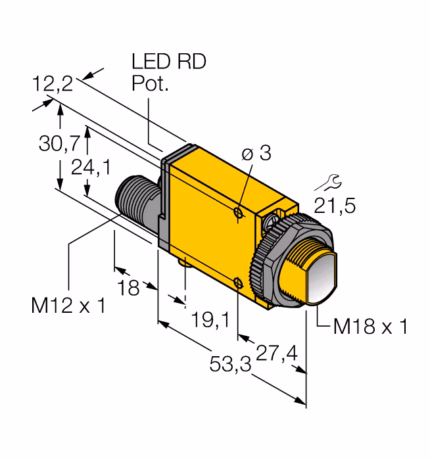

| Dimensions | 18 mm x 71.3 mm x 12.3 mm x 30.7 mm |
| Electrical output | Connector |
| Focal distance (mm) | 16 |
| Function | Proximity switch |
| Housing material | Plastic |
| Housing quality | Thermoplastic material |
| Light type | Red |
| Max. range (mm) | 16 |
| Operating mode | Convergent |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Setting option | Potentiometer |
| Special features | Encapsulated |
| Switching element function | NO contact |
| Wavelength (nm) | 650 |
