Photoelectric Sensor SME312FQD
Photoelectric Sensor
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Connector type | M12 × 1 |
| Design | Rectangular with thread |

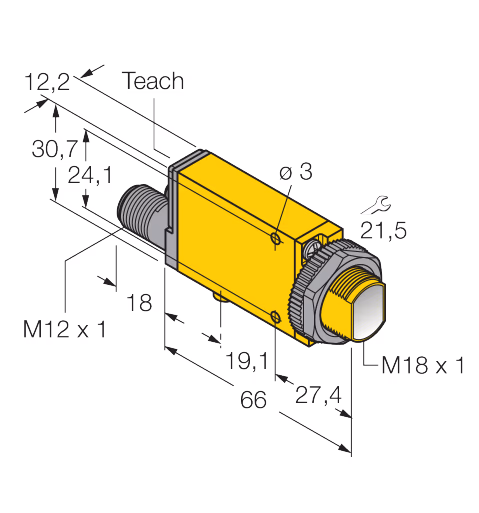

| Dimensions | 84 mm x 12.3 mm x 30.7 mm |
| Electrical output | Connector |
| Function | Fiber optic sensor |
| Housing material | Plastic |
| Housing quality | Thermoplastic material |
| Light type | IR |
| Operating mode | Glass fiber |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Setting option | Push Button, Remote Teach |
| Special features | Wash down |
| Switching element function | NO contact |
| Switching frequency (kHz) | 1 |
| Wavelength (nm) | 880 |
