Pick-to-Light K30PTSQ2PS
Pick-to-Light
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Cable length (m) | 0.24 |
| Cascadable | No |
| Communication protocol | RS485 |
| Connector type | M12 × 1 |
| Design | Cylinder, threaded |

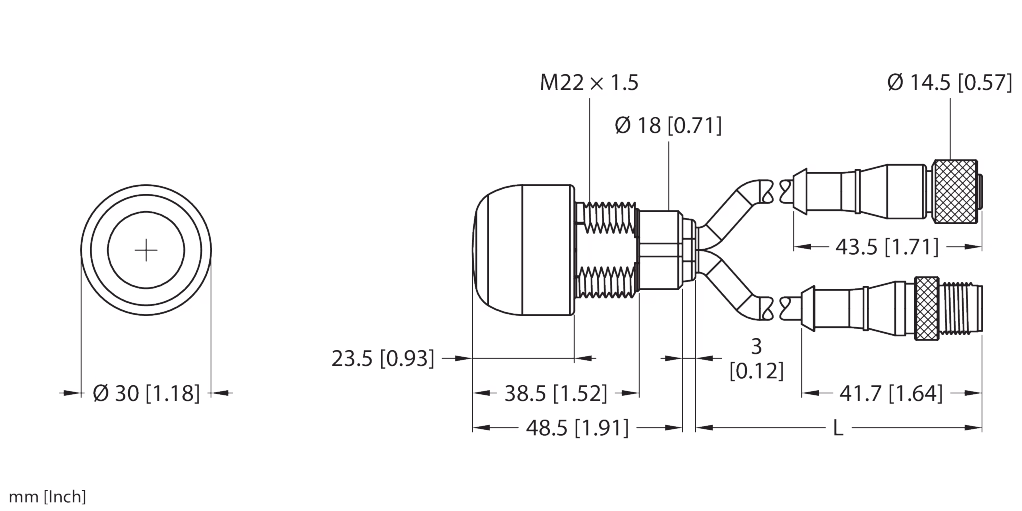

| Dimensions | 30 mm x x 41 mm |
| Dimmable | Programmable |
| Electrical output | Cable with connector |
| Function | Touch button |
| Housing material | Plastic |
| Housing quality | PC |
| Light type | RGB |
| Operating voltage | DC |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Switching element function | NO contact |
