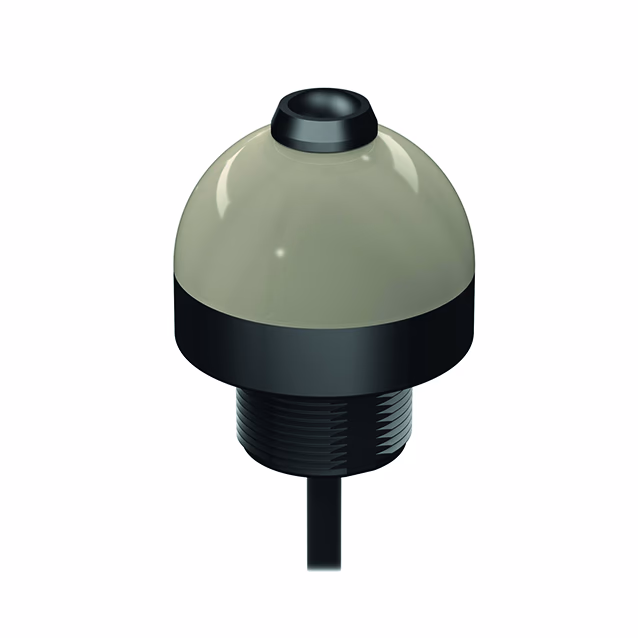

Pick-to-Light K50APPBGRYC3QPMA
Pick-to-Light
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Cable length (m) | 0.15 |
| Connector type | M12 × 1 |
| Design | Dome |
| Dimensions | 50 mm x x 63.7 mm |
| Electrical output | Cable with connector |
| Function | Pushbutton |
| Housing material | Plastic |
| Housing quality | PC, Thermoplastic material |
| Input type | PNP |
| Number of colors/segments | 3 |
| Operating voltage | DC |
| Output function | PNP |
| Protection class | IP67 |
| Special features | I/O module-compatible, Wash down |
| Switching element function | NO contact |
