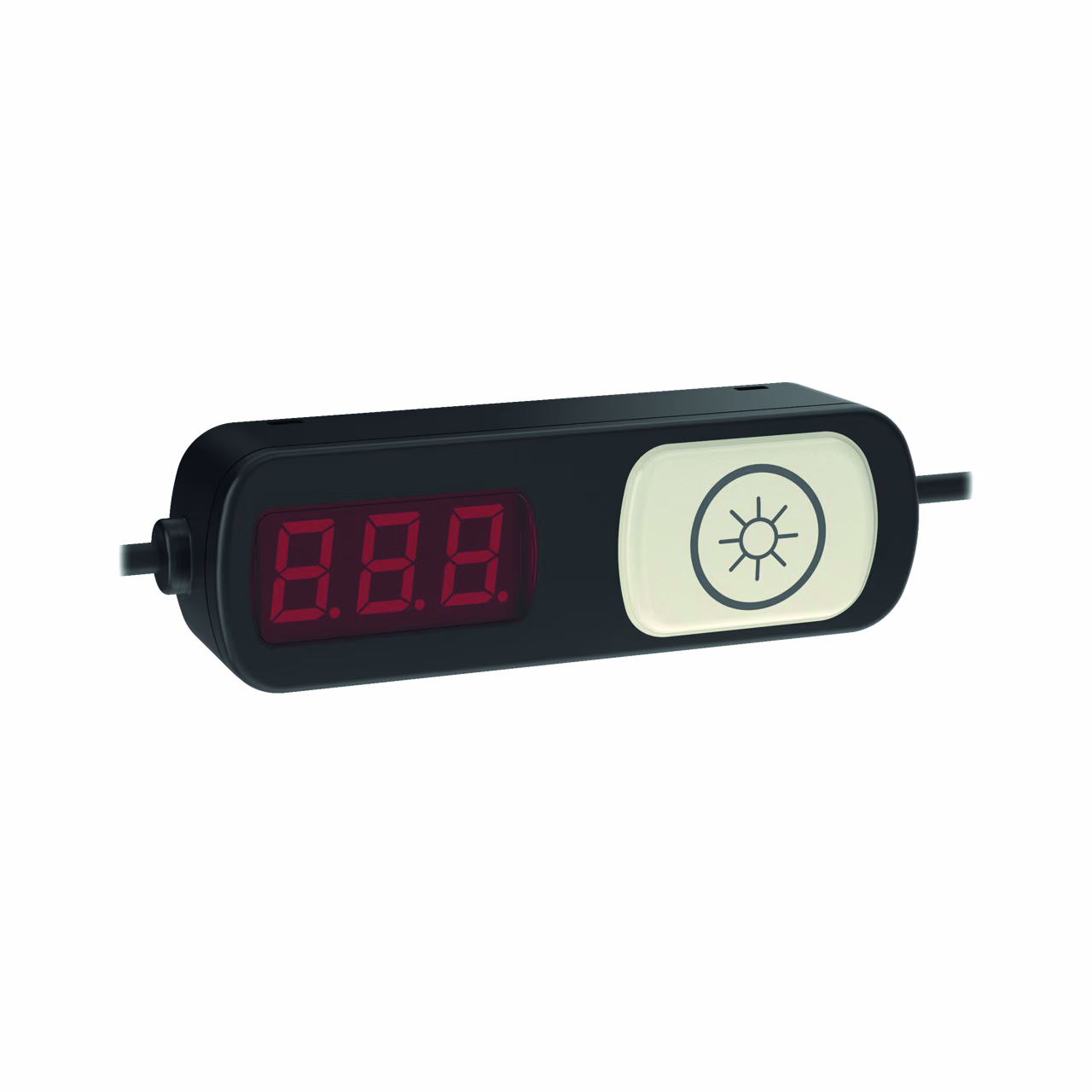

Pick-to-Light PTL110S-FF200TD3-QPS150
Pick-to-Light
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Cable length (m) | 0.15 |
| Cascadable | Yes |
| Communication protocol | Modbus RTU |
| Connector type | M12 × 1 |
| Design | Rectangular |
| Dimensions | 110 mm x 35 mm x 33.1 mm |
| Display | 3-digit 7-segment LED display |
| Electrical output | Cable with connector |
| Function | Diffuse mode sensor with fixed-field background suppression |
| Housing material | Plastic |
| Housing quality | ABS |
| Light type | IR |
| Max. range (mm) | 200 |
| Number of beams | 1 |
| Number of colors/segments | 14 |
| Operating voltage | DC |
| Protection class | IP54 |
| Special features | I/O module-compatible |
