Pick-to-Light PVL500N
Pick-to-Light
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Cable length (m) | 2 |

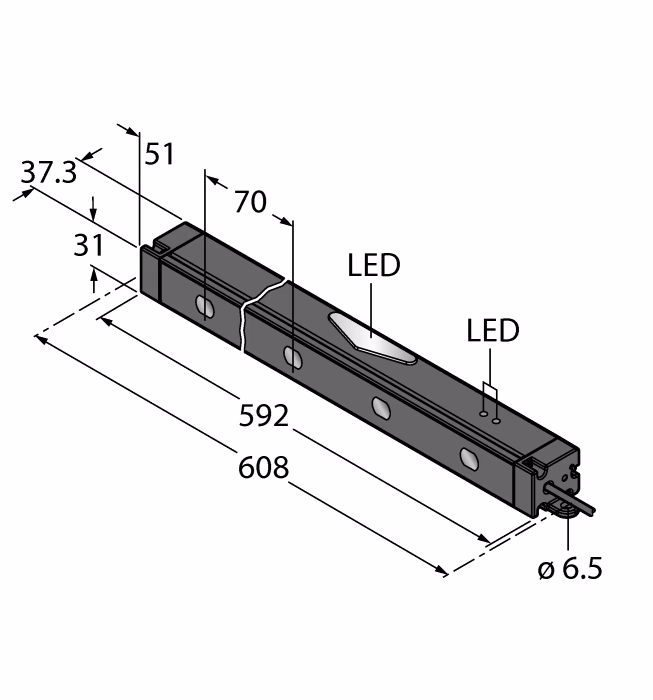

| Construction size | 608 x 31 x 37.3 mm |
| Design | Rectangular |
| Dimensions | 608 mm x 31 mm x 37.3 mm |
| Electrical output | Cable |
| Function | Retroreflective Sensor |
| Housing material | Metal |
| Housing quality | Anodized AL |
| Input type | minus‐schaltend |
| Light type | Red |
| Max. range (mm) | 1500 |
| Number of beams | 8 |
| Number of colors/segments | 2 |
| Operating mode | Unpolarized |
| Operating voltage | DC |
| Optical resolution (mm) | 70 |
| Output function | NPN |
| Protection class | IP50 |
| Scan field (mm) | 500 |
| Switching element function | NO contact |
| Wavelength (nm) | 630 |
