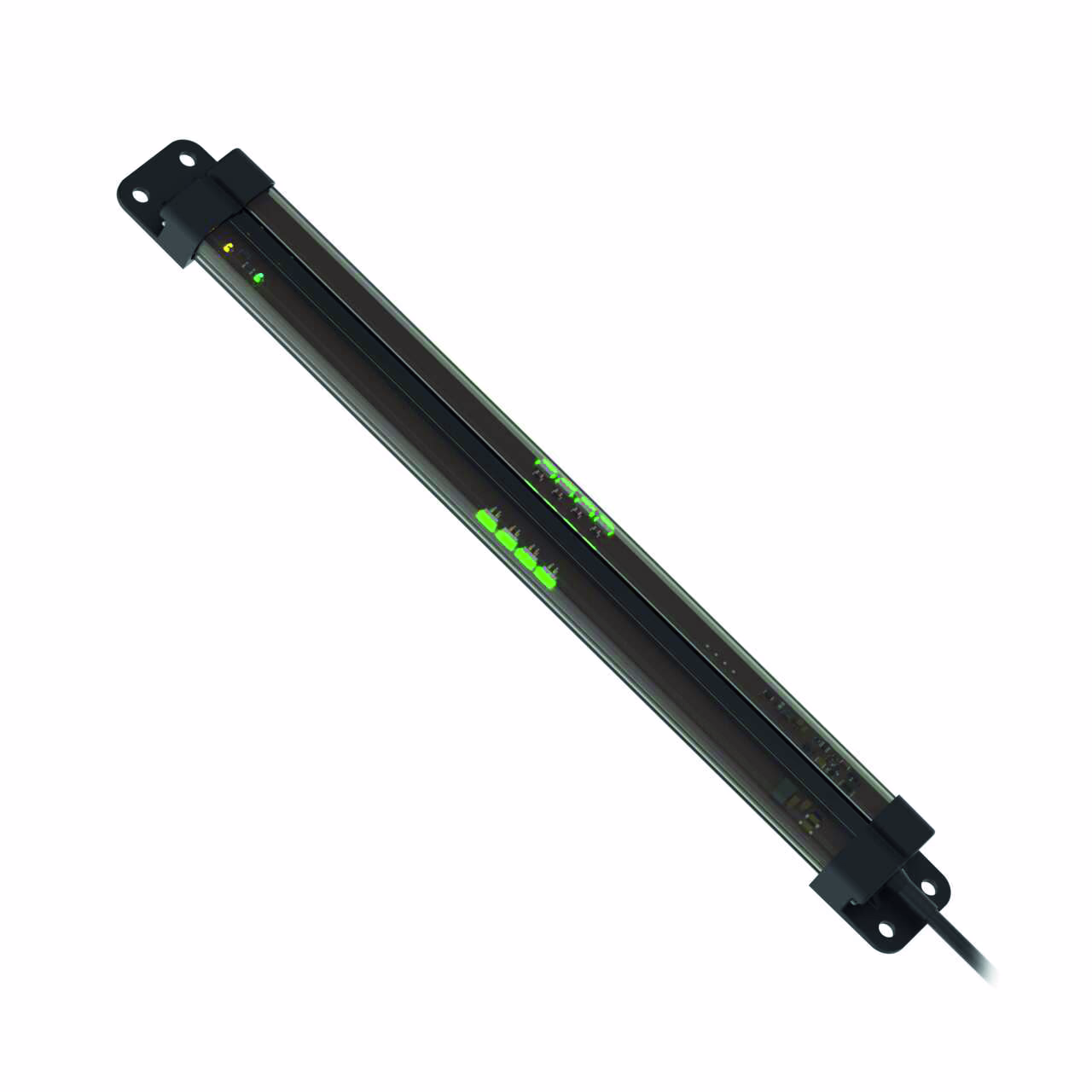

Pick-to-Light PVS28D225QP
Pick-to-Light
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Connector type | M12 × 1 |
| Design | Rectangular |
| Dimensions | 15 mm x 28 mm x 270.6 mm |
| Electrical output | Cable with connector |
| Function | Light screen |
| Housing material | Plastic |
| Housing quality | PC |
| Light type | IR |
| Max. range (mm) | 1000 |
| Operating voltage | DC |
| Output function | PNP/NPN |
| Protection class | IP54 |
| Scan field (mm) | 225 |
| Switching element function | NO/NC |
| Wavelength (nm) | 940 |
