Pick-to-Light S22AMTFBGHQP
Pick-to-Light
| Ambient temperature max. (°C) | 50 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Cable length (m) | 0.15 |
| Connector type | M12 × 1 |

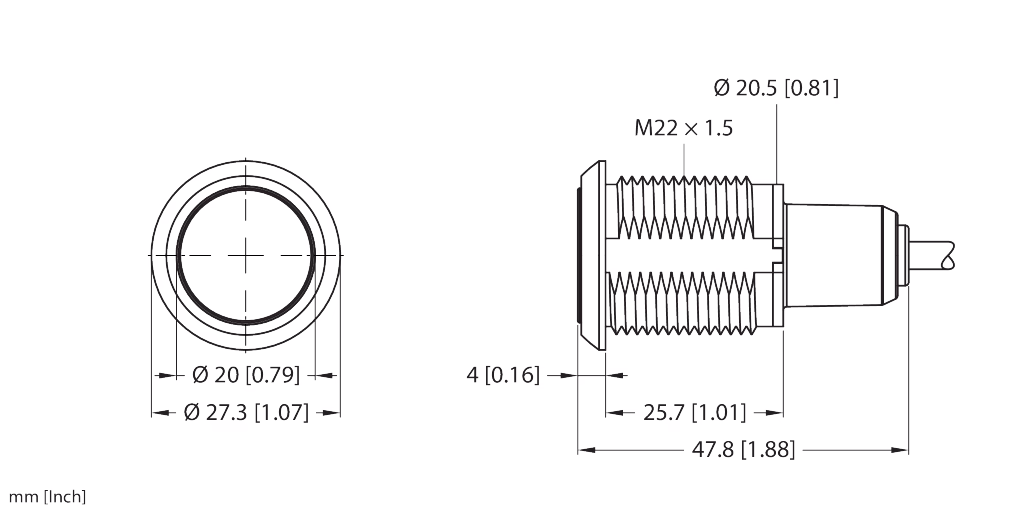

| Dimensions | 27.3 mm x x 47.8 mm |
| Electrical output | Cable with connector |
| Function | Touch button |
| Light type | Blue, Green |
| Operating voltage | DC |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Switching element function | NO contact |
