piconet Extension Module for IP-Link SNNE-0808D-0001
piconet Extension Module for IP-Link
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | |
| Approvals | cULus |
| Connection technology signal | M8 |
| Device type | Extension module |

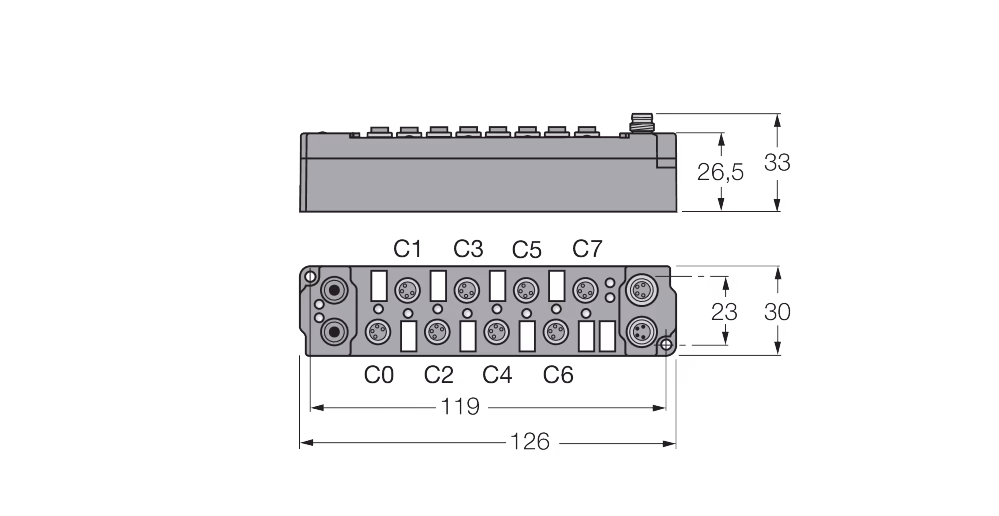

| Dimensions | 126 mm x 30 mm x 26.5 mm |
| Network protocol | CANopen, DeviceNet, EtherNet/IP, Modbus TCP, PROFIBUS-DP, PROFINET |
| Number of channels | 16 |
| Operating voltage | DC |
| Output voltage | 20…29 VDC from load voltage |
| Protection class | IP67 |
| Signal type | Digital input, Digital input/output, Digital output |
| Voltage (V) | 2 x M8 |
