piconet stand-alone module for DeviceNet SDNB-0800D-1007
piconet stand-alone module for DeviceNet
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | |
| Approvals | cULus |
| Connection technology signal | M8 |
| Device type | Compact station, I/O Module |

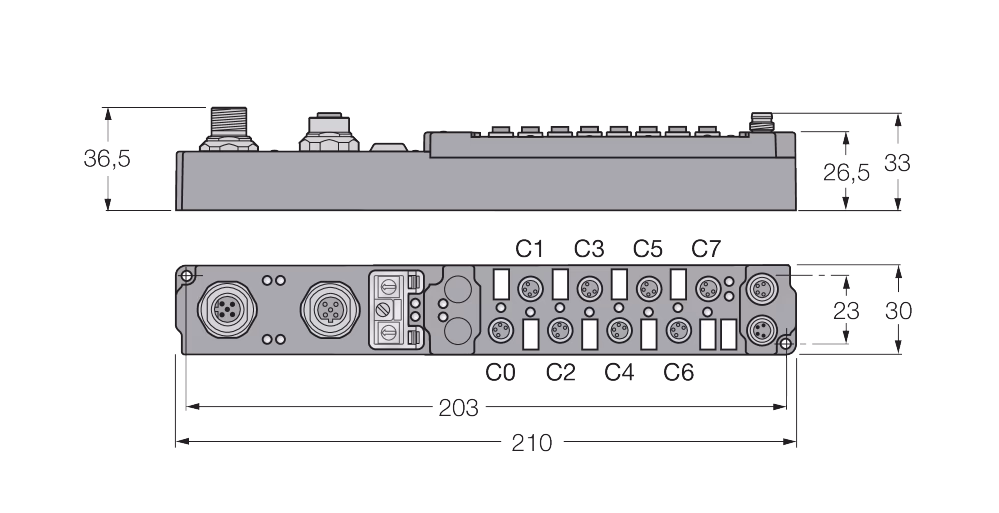

| Dimensions | 210 mm x 30 mm x 26.5 mm |
| Fieldbus connection technology | 2 × M12 |
| Fieldbus transmission rate | 125/250/500 kbps |
| Network protocol | DeviceNet |
| Number of channels | 8 |
| Operating voltage | DC |
| Protection class | IP67 |
| Signal type | Digital input |
| Voltage (V) | 2 x M8 |
