piconet stand-alone module for PROFIBUS-DP SDPB-0202D-0003
piconet stand-alone module for PROFIBUS-DP
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | |
| Approvals | cULus |
| Connection technology signal | M12 |
| Device type | Compact station, I/O Module |

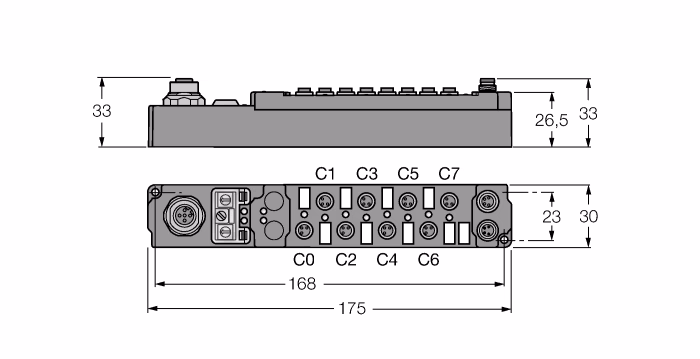

| Dimensions | 175 mm x 30 mm x 26.5 mm |
| Fieldbus connection technology | 1 × M12 |
| Fieldbus transmission rate | 9.6 kbps …12 Mbps |
| Network protocol | PROFIBUS-DP |
| Number of channels | 2 |
| Operating voltage | DC |
| Protection class | IP67 |
| Signal type | Counter |
| Voltage (V) | 2 x M8 |
