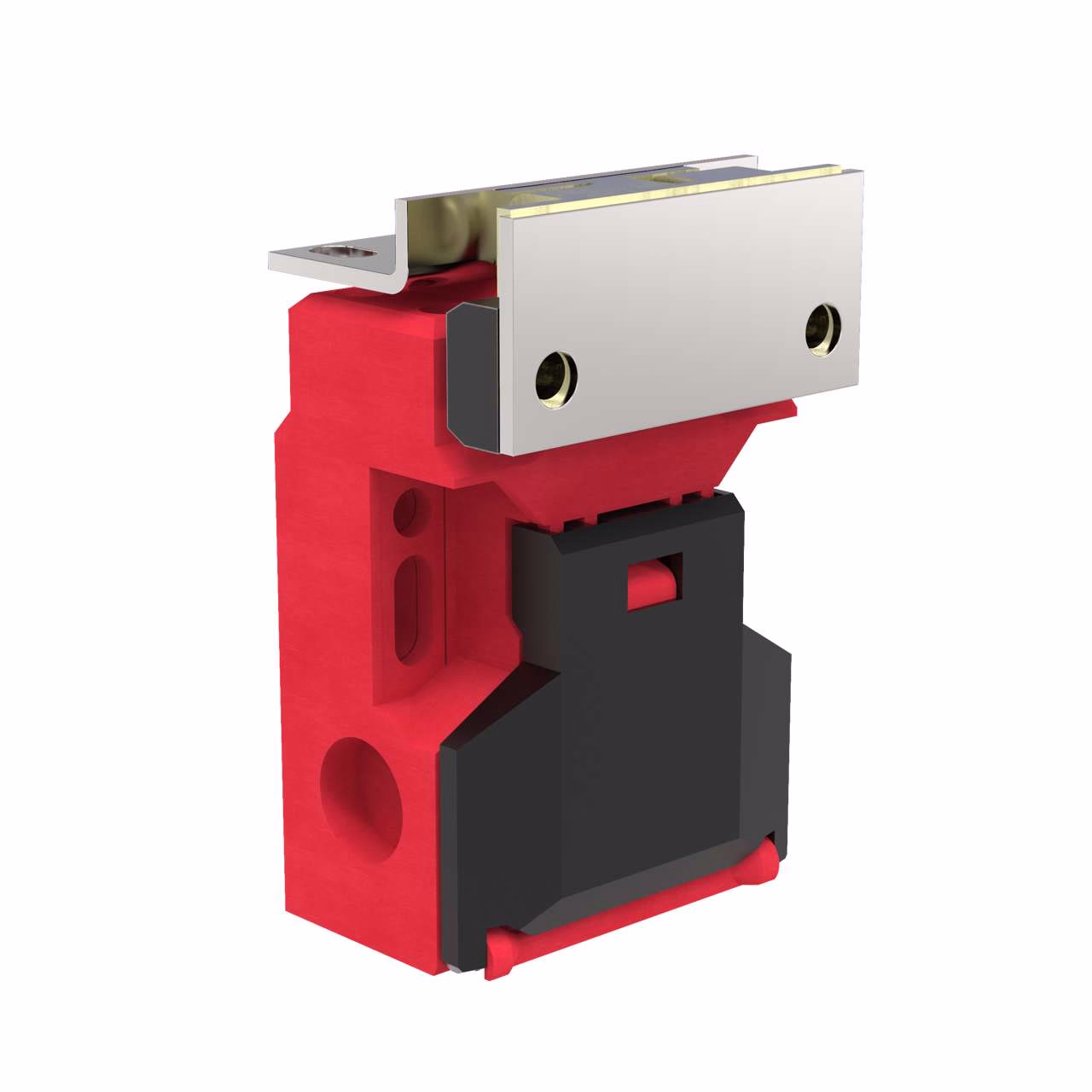

Plastic Compact Safety Interlock Switches – Banner – SI-QS75MC-100
Flat Pack Switch: In-line
Actuator Position: Front Including High Force Adapter
Contact Configuration: 1 NC
Dimensions: 75x52x33 mm; Plastic Housing
| Actuator (Safety) Contacts | 1 NO |
|---|---|
| Auxilliary Output | No |
| Device Size | 75 x 52 x 30 |
| ISD Connect Compatible | No |
| In-Series Diagnostics | No |
| Mechanical Life (operations in millions) | 1.0 |
| SISTEMA | B10d = 2 million |
| Safety Category | Cat 4 |
| Switch Style | Contact |
| Actuation | High-Force In-Line |
| Coding level/tamper protection | Low |
| Design | Rectangular |
| Device type | Mechanical – Kit |
| Functional safety (SIL/PL) | SIL CL 3 |
| Item Status | RELEASED |
| Output type | Contacts |
| PL Rating | PL e |
| Protection class shaft | IP65 |
| Receptacle housing material B | Thermoplastic |
| Voltage supply connection | Wiring Chamber |
| Min Op. Temperature (C) | -30.0 |
| Max Op. Temperature (C) | 80.0 |
| Minimum Hinged Door Size (mm) | 150.0 |
Description
Flat Pack Switch: In-line
Actuator Position: Front Including High Force Adapter
Contact Configuration: 1 NC
Dimensions: 75x52x33 mm; Plastic Housing
