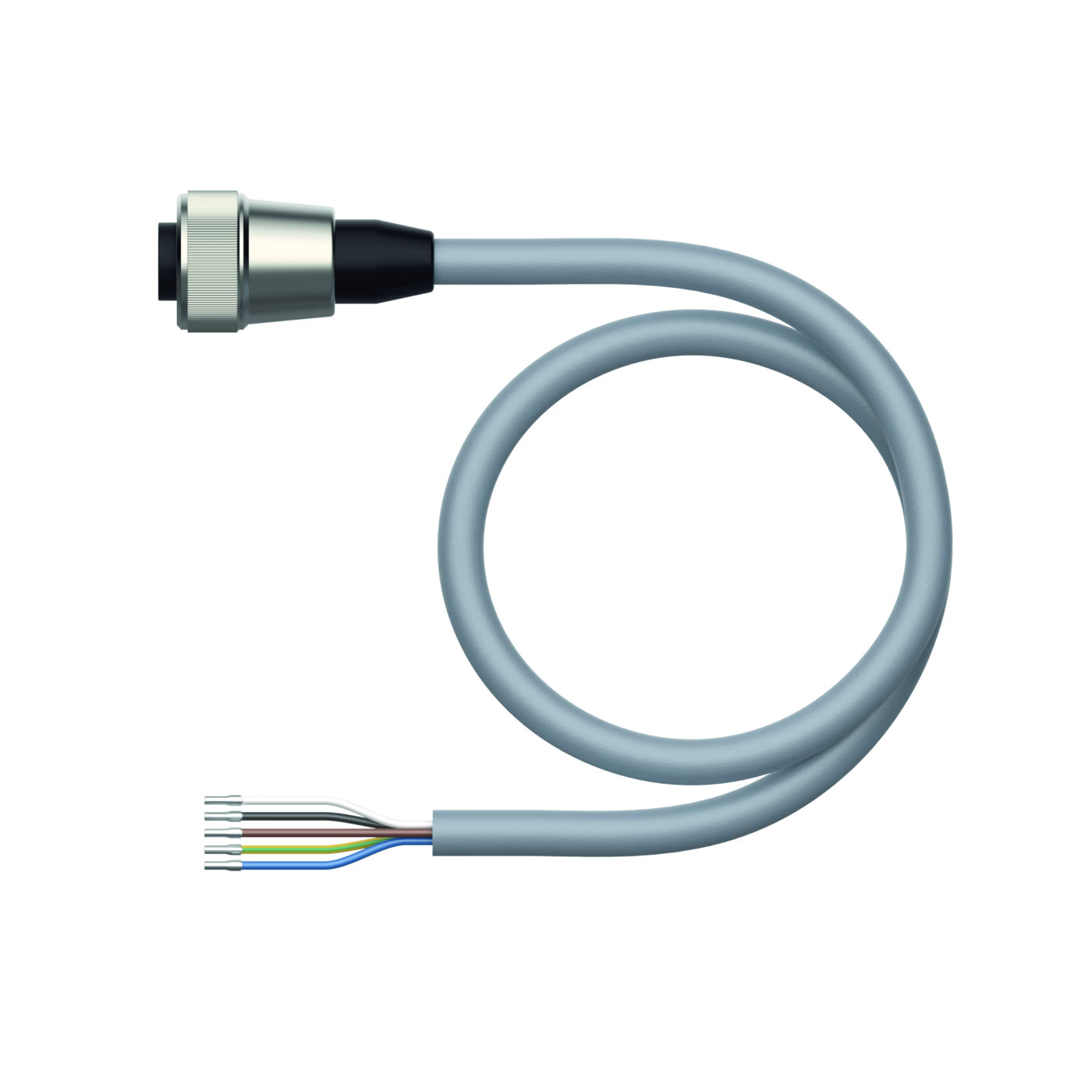

Power Supply Cable, PUR RKM52-15M
Power Supply Cable, PUR
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Application | Power |
| Approvals | CE, UKCA, UL |
| Cable color | Gray |
| Cable length (m) | 15 |
| Cable quality | PUR |
| Connector A | 7/8″-16 UN, Female, Straight |
| Coupling nut/screw material A | Brass |
| Current (A) | 12 |
| Design | Connection Cable |
| Number of Conductors | 5 |
| Number of pins | 4+PE |
| Plug body | Plastic |
| Special features | Suitable for drag chain use |
| Voltage output | 300 |
| Cable diameter (mm) | 8.5 |
| Core cross section mm? | 1.5 |
