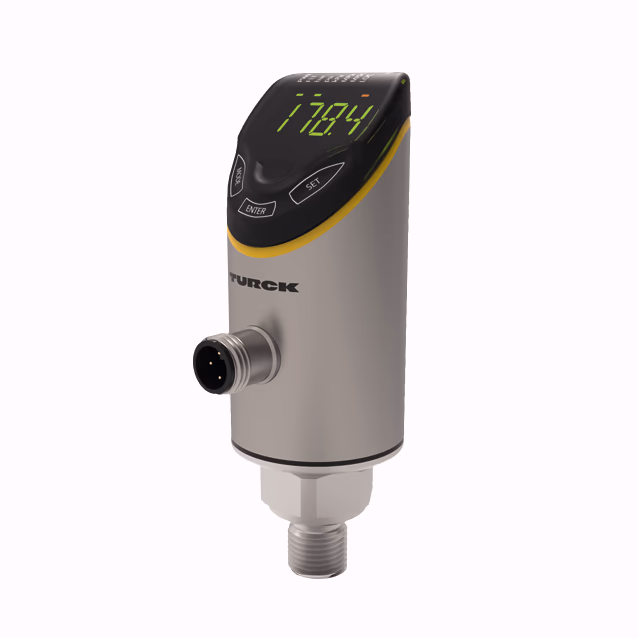

Pressure Sensor PS510-10V-08-LI2UPN8-H1141/X
Pressure Sensor
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | cULus |
| Communication protocol | IO-Link |
| Connector type | M12×1 |
| Design | With display |
| Electrical connection | Current output (3-wire), IO-Link, Switching output, Voltage output (3-wire) |
| Electrical output | Connector |
| Housing material | Stainless-steel/Plastic |
| Housing quality | 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5 |
| Media temperature max. (°C) | 80 |
| Media temperature min. (°C) | -40 |
| Output function | PNP/NPN |
| Process connection | G 1/2″ male thread DIN 3852-E (manometer) |
| Protection class | IP66, IP67, IP69K |
| Switching element function | NO/NC |
| Pressure range | -1…10 bar |
| Pressure type | Relative pressure |
