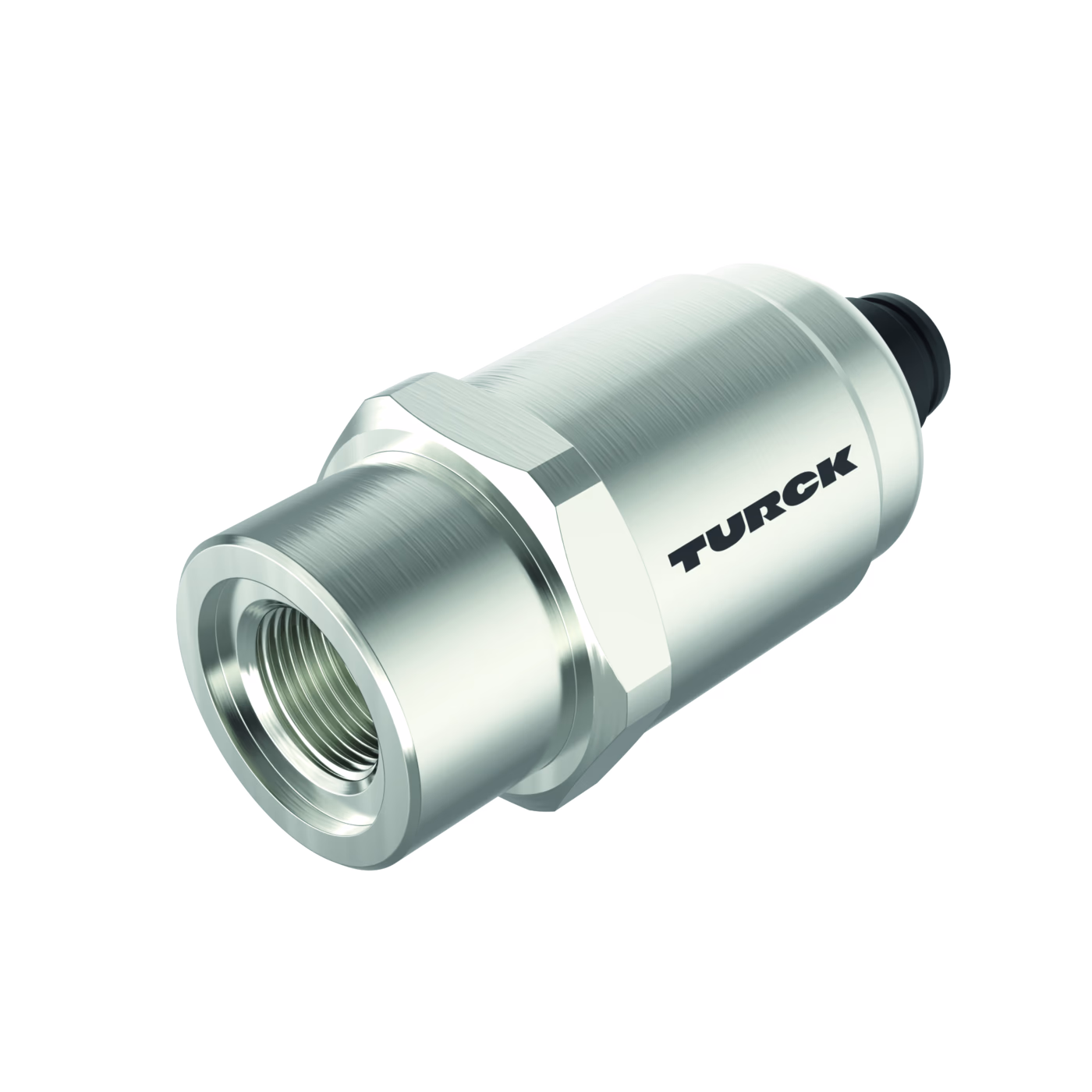

Pressure Transmitter PT0.05R-1501-I2-H1143/D840
Pressure Transmitter
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Approvals | cULus |
| Connector type | M12 × 1 |
| Design | Without display |
| Electrical connection | Current output (2-wire) |
| Electrical output | Connector |
| Housing material | Stainless-steel/Plastic |
| Housing quality | 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Material pressure transducer | Ceramic Al₂O₃ |
| Media temperature max. (°C) | 85 |
| Media temperature min. (°C) | -15 |
| Operating voltage | DC |
| Pressure range | 0…0.05 bar |
| Pressure type | Relative pressure |
| Process connection | G 1/4” female thread (front sealing) |
| Protection class | IP67 |
