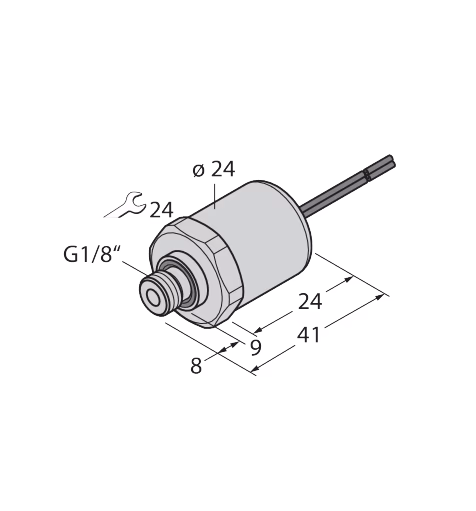

Pressure Transmitter PT0.2V-1013-U1-WM0.5
Pressure Transmitter
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -30 |
| Approvals | cULus |
| Connector type | Open end |
| Design | Without display |
| Electrical connection | Voltage output (3-wire) |
| Electrical output | Stranded wires |
| Housing material | Stainless-steel/Plastic |
| Housing quality | 1.4404 (AISI 316L)/polyarylamide 50Â % GF UL 94 V-0 |
| Material pressure transducer | Ceramic Al₂O₃ |
| Media temperature max. (°C) | 125 |
| Media temperature min. (°C) | -40 |
| Operating voltage | DC |
| Output function | Analog output voltage |
| Pressure range | -0.2…0.2 bar |
| Pressure type | Relative pressure |
| Process connection | G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring |
| Protection class | IP65 |
