Pressure Transmitter PT16R-1020-I2-DA91
Pressure Transmitter
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -30 |
| Approvals | cULus |

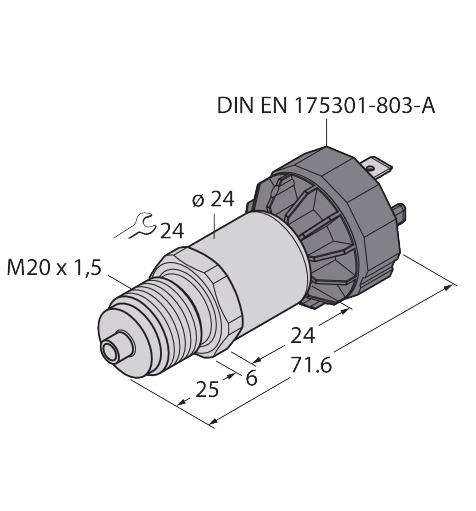

| Connector type | DIN EN 175301-803 Form A |
| Design | Without display |
| Electrical connection | Current output (2-wire) |
| Electrical output | Connector |
| Housing material | Stainless-steel/Plastic |
| Housing quality | 1.4404 (AISI 316L)/polyarylamide 50Â % GF UL 94 V-0 |
| Material pressure transducer | Ceramic Al₂O₃ |
| Media temperature max. (°C) | 125 |
| Media temperature min. (°C) | -40 |
| Operating voltage | DC |
| Output function | Analog output current |
| Pressure range | 0…16 bar |
| Pressure type | Relative pressure |
| Process connection | front sealing and manometer (combi), M20×1.5 male thread |
| Protection class | IP65 |
