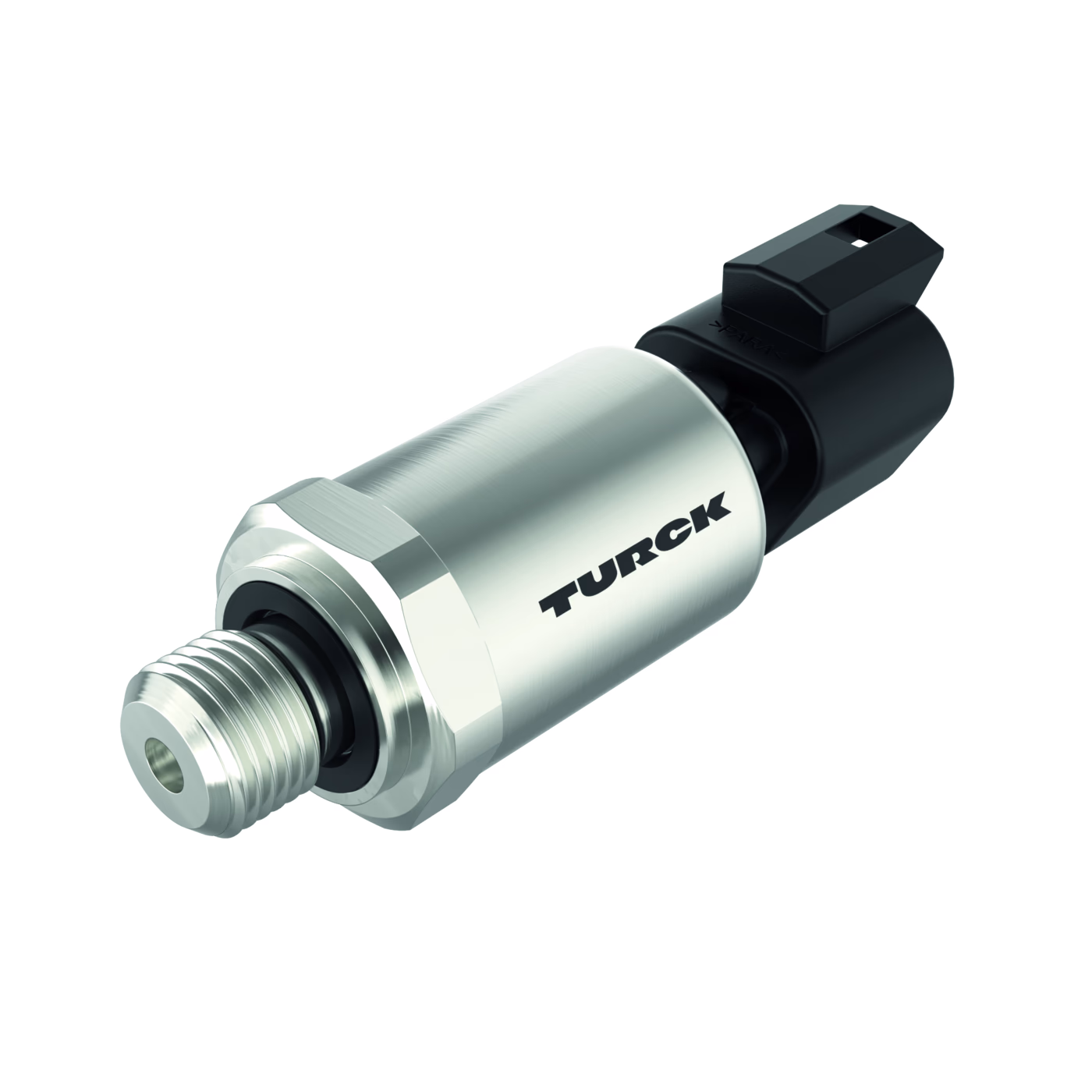

Pressure Transmitter PT50R-2104-U6-DT043P
Pressure Transmitter
| Ambient temperature max. (°C) | 100 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Connector type | Deutsch DT04-3P |
| Design | Without display |
| Electrical connection | Voltage output (3-wire) |
| Electrical output | Connector |
| Housing material | Stainless-steel/Plastic |
| Housing quality | 1.4404 (AISI 316L)/polyarylamide 50Â % GF UL 94 V-0 |
| Media temperature max. (°C) | 125 |
| Media temperature min. (°C) | -40 |
| Operating voltage | DC |
| Output function | ratiom. 10…90% |
| Process connection | G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring |
| Protection class | IP69K |
| Material pressure transducer | Stainless steel 1.4404 (AISI 316L) |
| Pressure range | 0…50 bar |
| Pressure type | Relative pressure |
