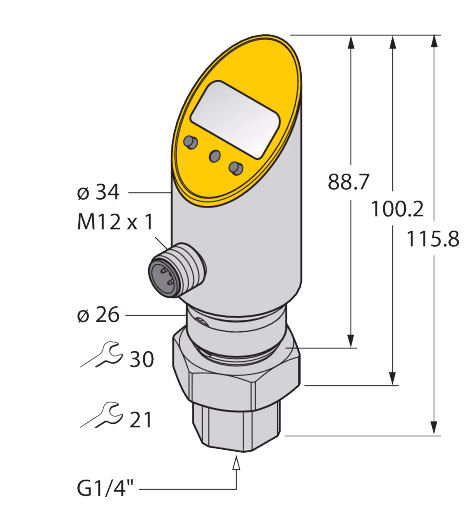

Pressure Transmitter (Rotatable) PS025A-501-2UPN8X-H1141/3GD
Pressure Transmitter (Rotatable)
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | cULus |
| Communication protocol | IO-Link |
| Connector type | M12 × 1 |
| Design | With display |
| Display | 4-digit 7-segment display, rotatable by 180°, with switch-off function |
| Electrical connection | 2 × switching output |
| Electrical output | Connector |
| Housing material | Stainless-steel/Plastic |
| Housing quality | 1.4305 (AISI 303) |
| Material pressure transducer | Ceramic Al₂O₃ |
| Media temperature max. (°C) | 85 |
| Media temperature min. (°C) | -40 |
| Operating voltage | DC |
| Output function | PNP/NPN |
| Pressure range | 0…25 bar |
| Pressure type | Absolute pressure |
| Process connection | G 1/4” female thread |
| Protection class | IP67 |
| Switching element function | NO/NC |
