Pulse input Externally powered rate totalisers, Intrinsically safe, panel mounting – BA337E-SS
Features:
Intrinsic safety certification
Proximity detector, magnetic pick-off, voltage pulse, or switch contact input.
Separate rate and total displays
Lineariser
Two input model
Rugged Stainless Steel model for use in Ex e, Ex n, Ex p and in Ex t panel enclosures in Zones 1, 2, 21 & 22.
BA338E has isolated synchronous pulse output as standard
Optional:
Internally powered display backlightIsolated AlarmsIsolated 4/20mA outputBA337E and BA337E-SS isolated synchronous pulse output
96 x 48mm Product dimensions105 x 60mm Product dimensions144 x 72mm Product dimensionsNew application guide
| Approvals | ATEX, CCC, CCOE, ETL, IECEx, UKEX |
|---|---|
| Display | Primary:8 digits 9mm highSecondary:6 digits 6mm high |
| Protection class | IP20, IP66 |
| Brand | Beka |
| Mounting | Panel |
| Options Available | Backlight, Alarms, 4-20mA Output, Pulse Output, CCOE Dust |
Product details

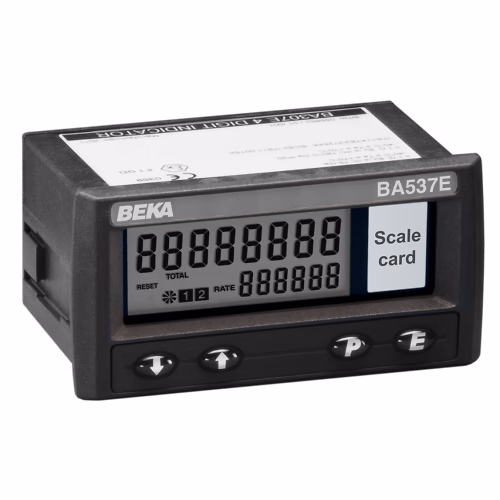

These easy to use, intrinsically safe rate totalisers can process and simultaneously display rate of flow and total flow from the pulse output of most flowmeters. International certification allows worldwide installation and a 16 segment lineariser ensures maximum accuracy.
Accessories, include a display backlight, isolated dual alarms, isolated 4/20mA output for BA337E and BA337E-SS and isolated synchronous pulse output.
Rate totalisers can be supplied configured and fitted with a customer specified printed scale card showing the units of measurement for no additional charge. Specified tag or application information can also be printed onto the rear of the instrument.
