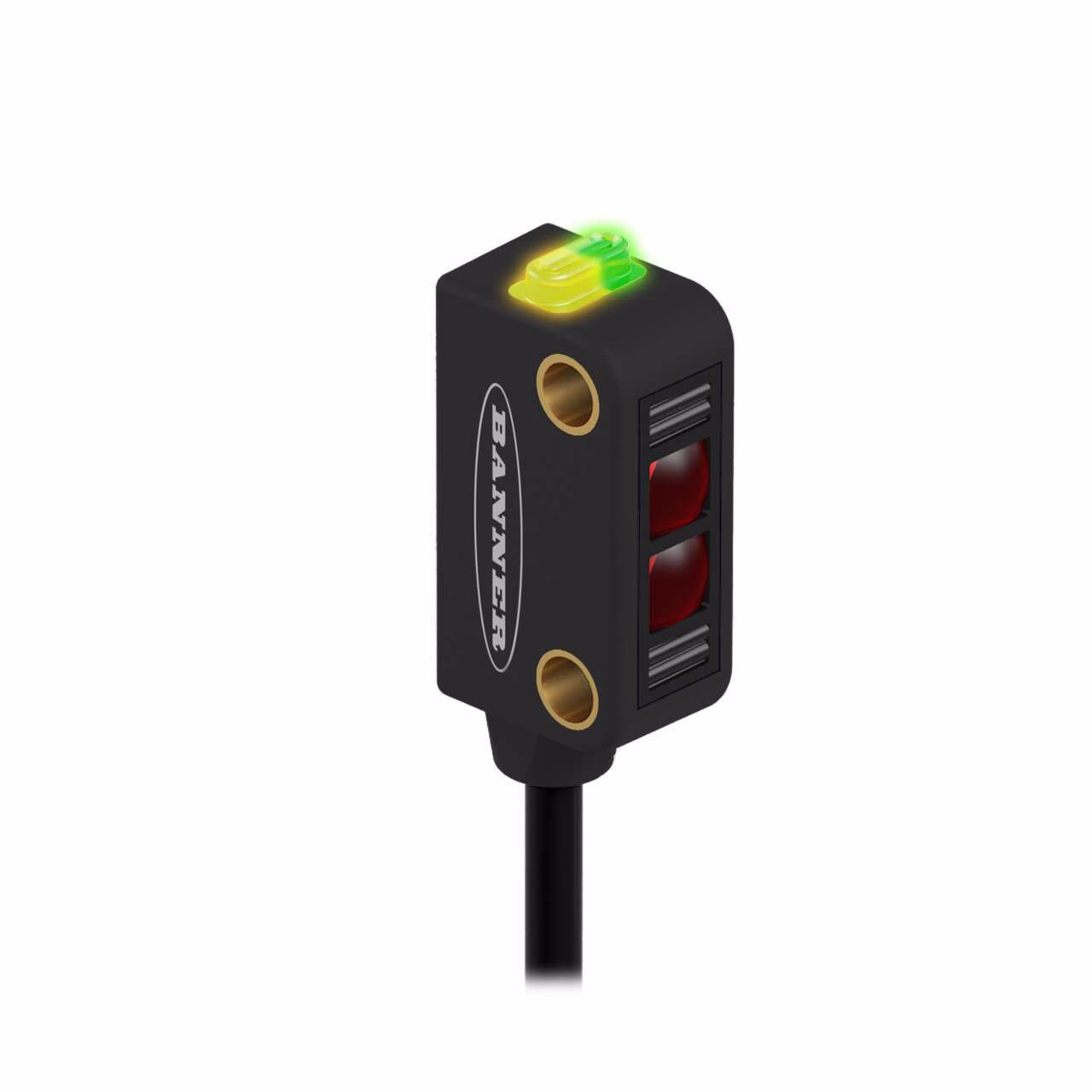

Q12 Series Miniature Self-Contained Sensor – Banner – Q12VP6FF15Q5
WORLD-BEAM Q12 Series: Fixed-Field
Range: 15 mm Cutoff; Input: 10-30 V dc
Output: LO (Light Operate); PNP complementary
150 mm (6 in) 4-pin M12 Pigtail QD
| Connection technology signal | Background Suppression (Fixed) |
|---|---|
| Homerun Exit Location | 0.85 ON/OFF |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Slot width (mm) | 0.15 |
| Item Status | RELEASED |
| Housing Style | Rectangular |
| Connection | Pigtail QD |
| Min Op. Temperature (C) | -20.0 |
| Feature: Audible | No |
| Sensing Mode (General) | Proximity |
| Operation | Light Operate |
| Input/Output | Discrete |
| Delay at Power-up (ms) | 120 |
| DeviceNet | No |
| Max Sensing Distance (mm) | 15.0 |
| Sensing Beam | Visible Red LED |
| Indicator | LEDs |
| Lens Material | Polycarbonate |
| Outputs | PNP |
| Max Op. Temp. (C) | 55 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Sensing Beam Wavelength | 640 |
| Small Visible Spot | LED |
| Feature | Quick Disconnect |
Description
WORLD-BEAM Q12 Series: Fixed-Field
Range: 15 mm Cutoff; Input: 10-30 V dc
Output: LO (Light Operate); PNP complementary
150 mm (6 in) 4-pin M12 Pigtail QD
