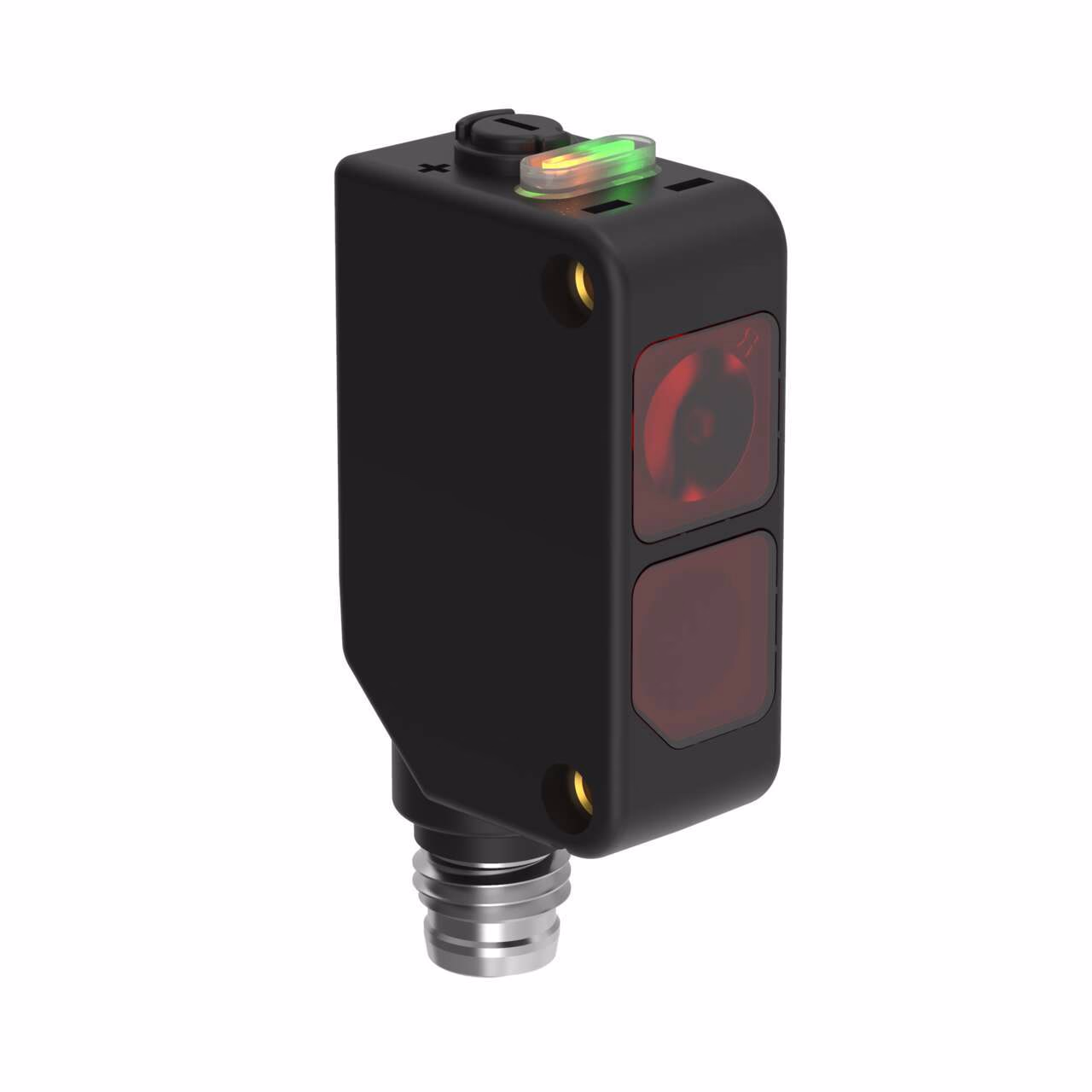

Q20 Series Industry Standard Global Housing – Banner – Q20PRLQ7
WORLD-BEAM Q20 Series: Long Range Receiver (IR)
Range: 20 m; Input 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Outputs | PNP |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Receiver |
| DeviceNet | No |
| Feature | Quick Disconnect |
| Homerun Exit Location | 1 ON/0.6 OFF |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Discrete |
| IO Link | No |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Opposed Mode Emitter/Receiver | Receiver |
| Port | M8 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 20000 |
| Max Op. Temp. (C) | 60 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
Description
WORLD-BEAM Q20 Series: Long Range Receiver (IR)
Range: 20 m; Input 10-30 V dc
Output: Complementary Solid-State PNP
M8 Integral QD
