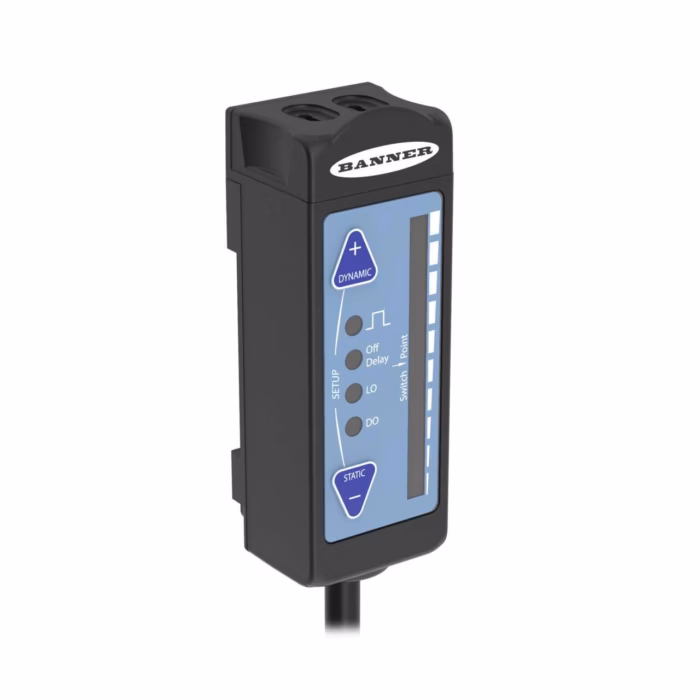

Q26 Series Compact Luminescence Sensor – Banner – Q26PLUMQ5
Q26 Series Luminescence Sensor
Range 10-30 mm; Supply Voltage 12-30 V dc; Rating IP67
PNP Outputs; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
| Connection | Pigtail QD |
|---|---|
| Outputs | PNP |
| Adjustments | Teach Button |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Feature | Quick Disconnect |
| Homerun Exit Location | 0.25 |
| Indicator | LEDs |
| Item Status | RELEASED |
| Lens Material | Polycarbonate |
| Number of pins | 4 |
| Operating voltage | 12-30 V dc |
| Operation | Light/Dark Operate |
| Port | M12 |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Black Ultraviolet LED |
| Sensing Beam Wavelength | 375 |
| Shaft diameter D (mm) | 1 mm at 12 mm |
| Slot width (mm) | 0.15 |
| Special feature | Remote Teach |
| Min Op. Temperature (C) | -10.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Max Op. Temperature (C) | 55.0 |
| Max Sensing Range (mm) | 30.0 |
| SF-Multifunction Input/Output | No |
| LED Orientation | Parallel to sensor length |
| Application.1 | Luminescence |
Description
Q26 Series Luminescence Sensor
Range 10-30 mm; Supply Voltage 12-30 V dc; Rating IP67
PNP Outputs; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
