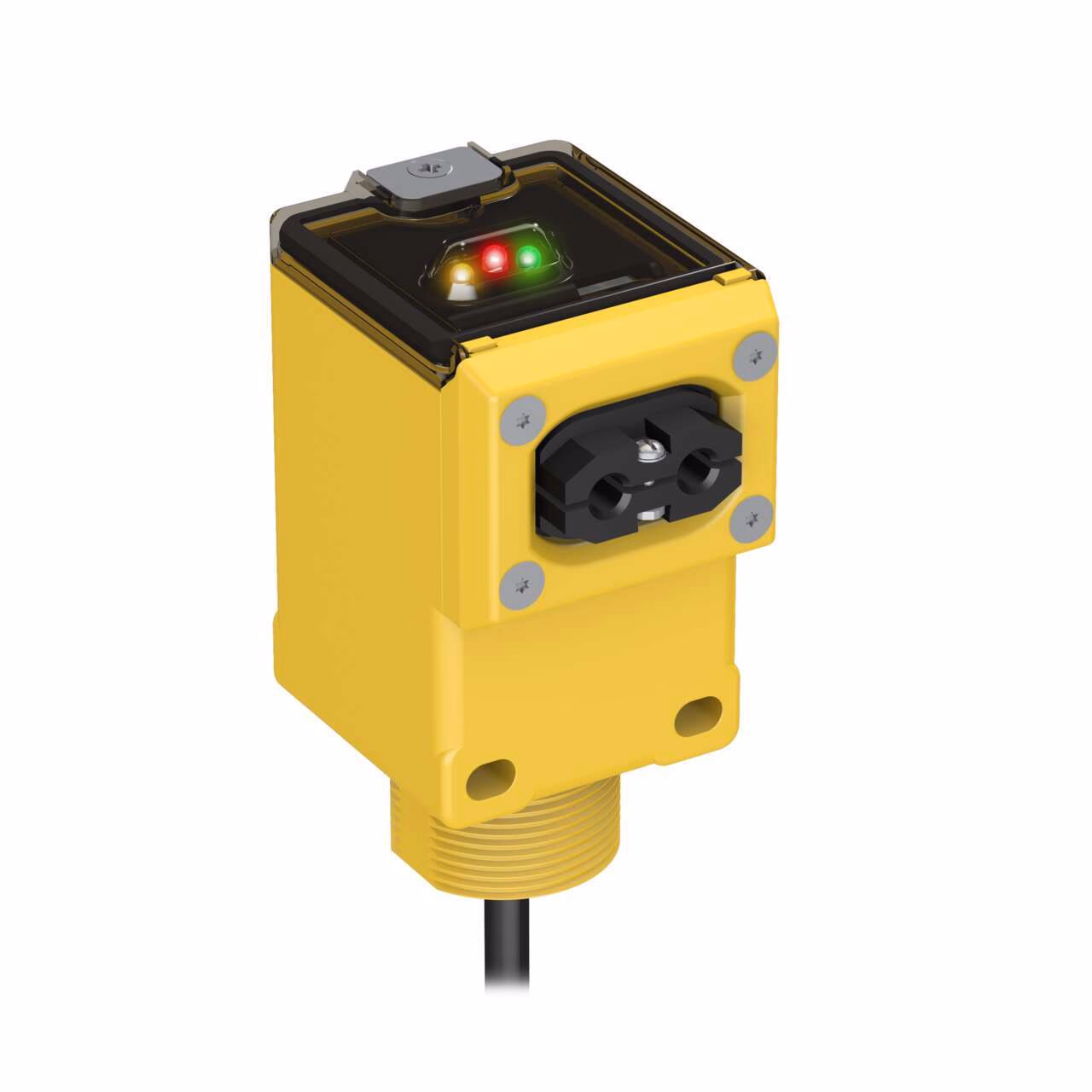

Q45 Series Rugged Fiber Optic Amplifier – Banner – Q45VR3FP
Q45 Series: Plastic Fiber Optic
Range: Depends on Fiber; Input: 12-250 V dc / 24-250 V ac
Output: SPDT Electromechanical Relay
2 m (6.5 ft) Cable
| Accepts Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
|---|---|
| Color LED - Amplifiers | Red |
| Connection | Cable |
| Feature: Audible | No |
| Fiber Type | Plastic and Glass |
| Indicator Display Type | Indicator LEDs |
| Output Type (Specific) | Single Discrete |
| Power Supply/Supply Voltage | 12-250 V dc or 24-250 V ac |
| Adjustments | Potentiometer |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Feature | Timing (Hold/Delay) |
| Housing material | Thermoplastic |
| Housing Style | Rectangular |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Number of pins | 5 |
| Power Good Output | AC/DC Universal |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Min Op. Temperature (C) | -25 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 2 |
| Delay at Power-up (ms) | 100 |
| Max Op. Temperature (C) | 55 |
| Max op. relative humidity (%).1 | 90% @ 50°C |
| Minimum Response Time (ms) | 15 |
| Setting option | SPDT e/m Relay |
Description
Q45 Series: Plastic Fiber Optic
Range: Depends on Fiber; Input: 12-250 V dc / 24-250 V ac
Output: SPDT Electromechanical Relay
2 m (6.5 ft) Cable
