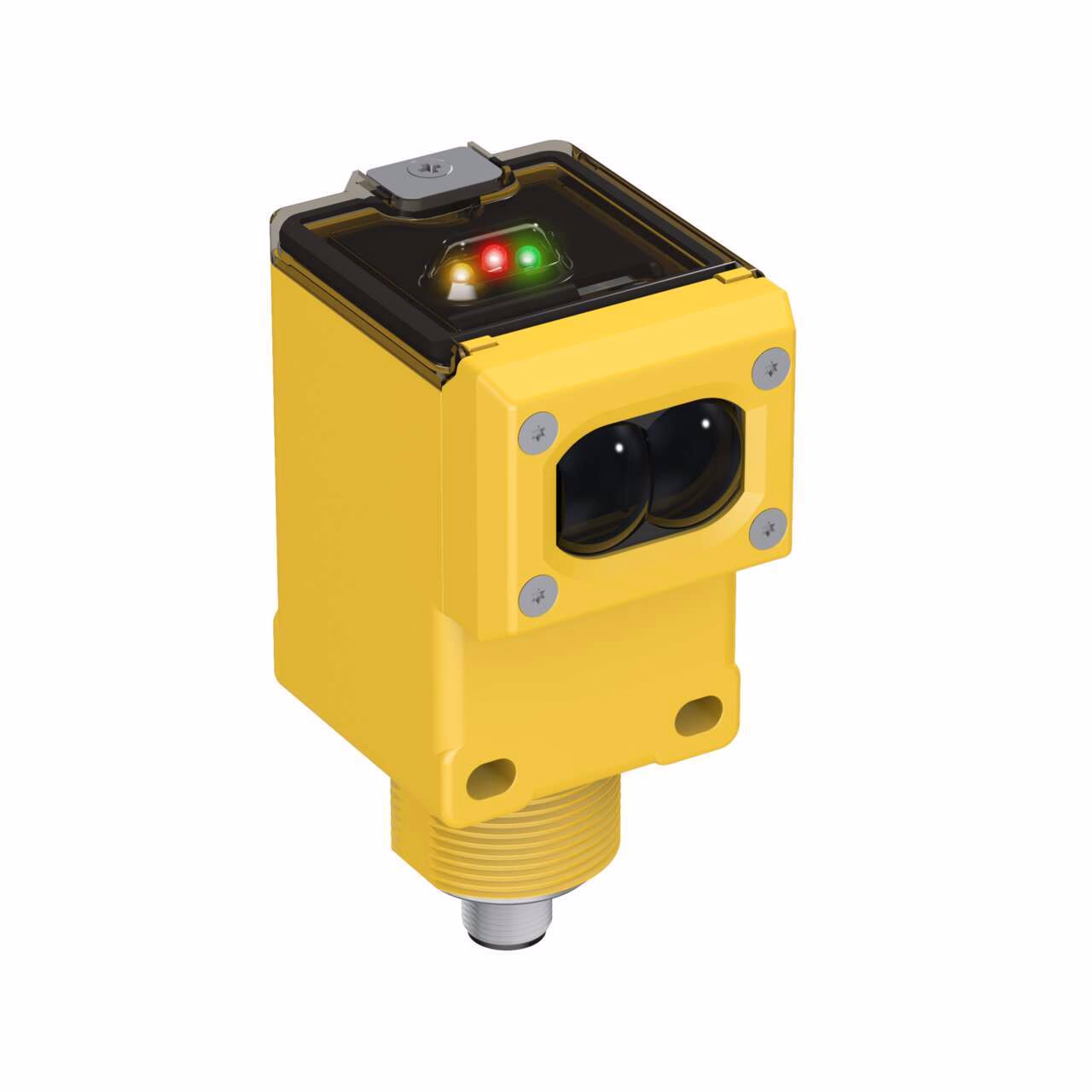

Q45 Series Rugged Rectangle Sensor – Banner – Q45BW22LVQ1
Q45 Series: Retro
Range: 0.08 – 9 m; Input: 90-250 V ac
Output: SPST Solid-state Relay
4-pin Micro Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Outputs | Solid-State AC Switch |
| Sensing Mode (General) | Retroreflective |
| Adjustments | Potentiometer |
| Connection technology signal | Non-Polarized |
| DeviceNet | No |
| EPLAN Original Sent Date | 01/11/2023 |
| EPLAN Status | Published |
| Feature | Quick Disconnect, Timing (Hold/Delay) |
| Homerun Exit Location | 2 |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Solid-State AC Switch |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 90-250 V ac |
| Operation | Light/Dark Operate |
| Port | 1/2 in. (Micro) |
| Power Good Output | AC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 680 |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 9000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Barrel Diameter (mm) | 30 |
Description
Q45 Series: Retro
Range: 0.08 – 9 m; Input: 90-250 V ac
Output: SPST Solid-state Relay
4-pin Micro Integral QD
