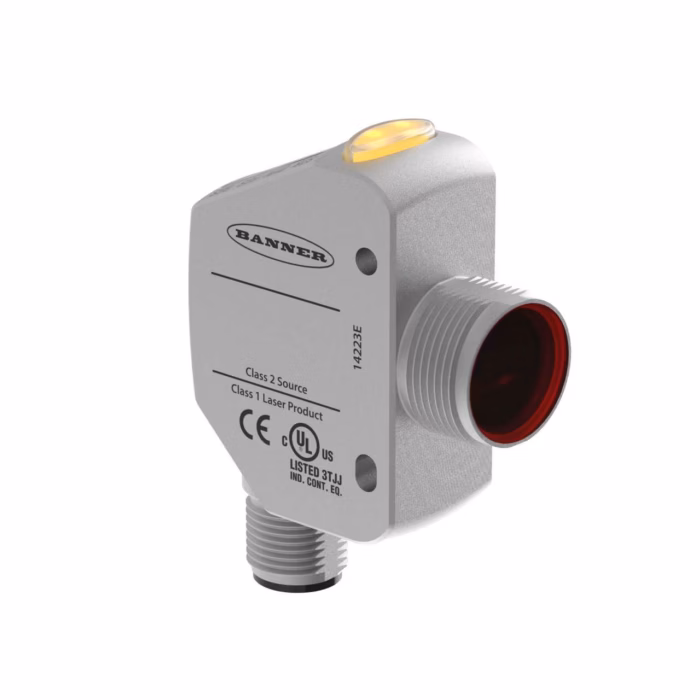

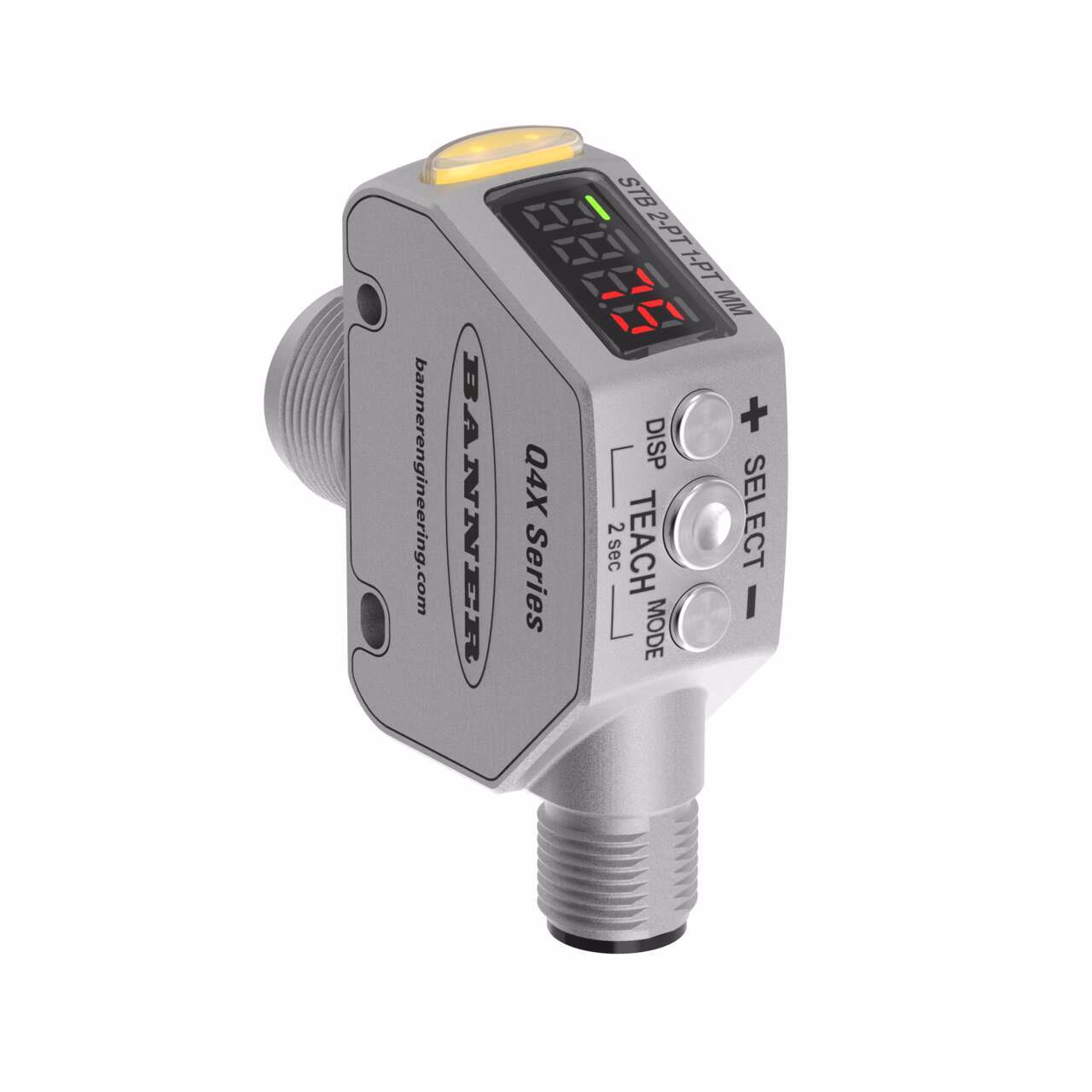

Q4X Series Rugged Laser Distance Sensor – Banner – Q4XTILAF300-Q8
Q4X Series: Laser Adjustable Field
Range: 300 mm; Input 12-30 V dc
Output: Analog: 4-20 mA
5-pin M12 Integral QD
| Analog Output Configuration | 4-20 mA |
|---|---|
| Connection | Integral QD |
| Jam Detection | No |
| Laser Classification | Class 1 |
| Laser Control | Yes |
| Max Ambient Light (Lux) | 5000 |
| Min Operating Temperature (C) | -10.0 |
| Minimum Sensing Distance (mm) | 25.0 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Adjustments | Push Button; Remote Teach |
| Connection technology signal | Background/Foreground Suppression |
| Device type | Sensor |
| EPLAN Original Sent Date | 12/08/2021 |
| EPLAN Status | Published |
| Feature | Chemical Resistant, Ecolab Certified, Quick Disconnect, Remote Teach, Washdown Rated |
| Housing Style | Rectangular w/ Threaded Mount |
| Input/Output | Analog |
| IO Link | No |
| Item Status | RELEASED |
| Network protocol | No |
| Number of pins | 5 |
| Operating voltage | 12-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP68, IP69K |
| Radio interface | No |
| Receptacle housing material B | Stainless Steel |
| RS-232 | No |
| Screw-in thread | M18 |
| Sensing Beam | Visible Red Laser |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 300.0 |
| Minimum Response Time (ms) | 0.5 |
Description
Q4X Series: Laser Adjustable Field
Range: 300 mm; Input 12-30 V dc
Output: Analog: 4-20 mA
5-pin M12 Integral QD
