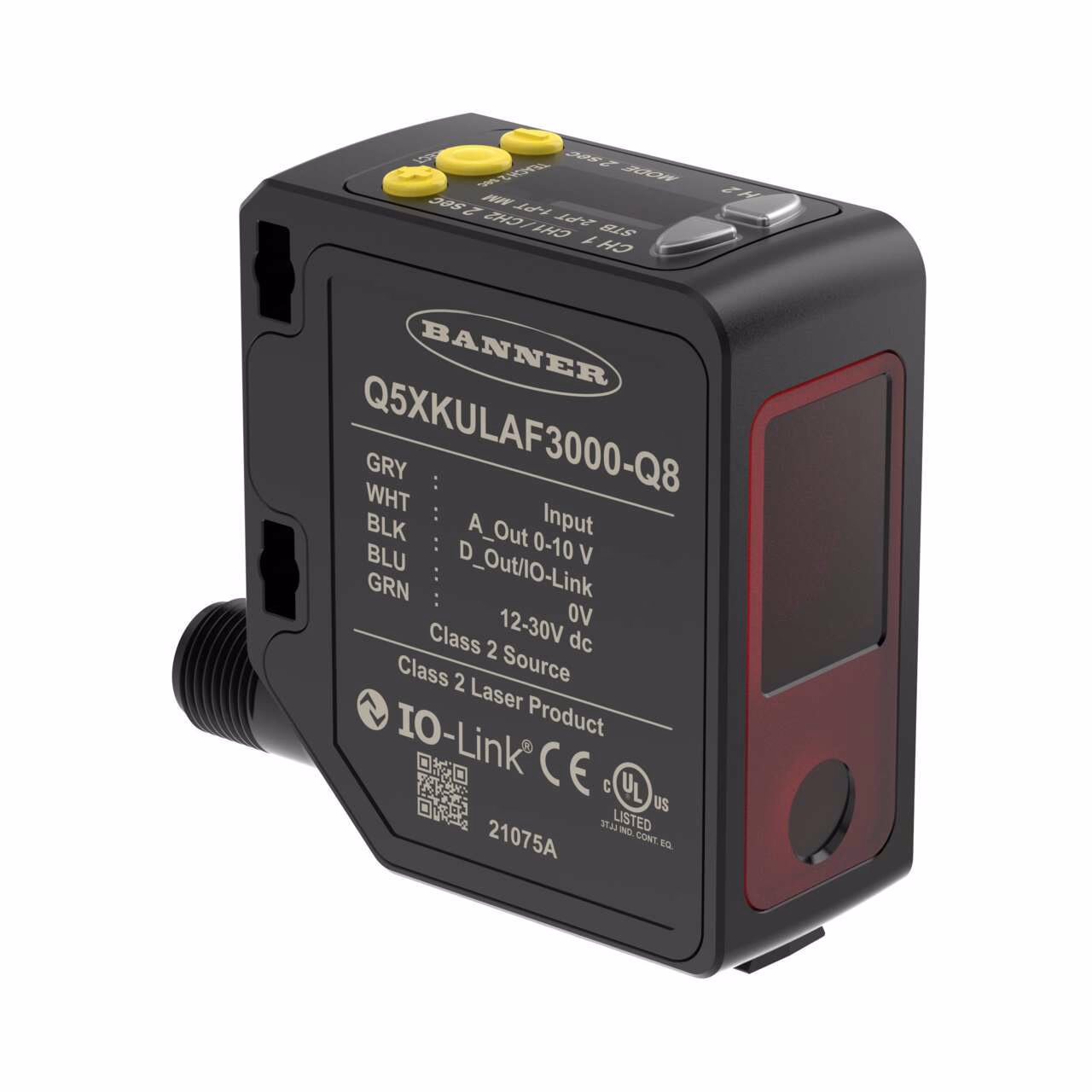

Q5X Series High Power, Multi-Purpose Photoelectric Sensor – Banner – Q5XKULAF3000-Q8
Q5X Series: Laser Adjustable Field
Range: 3000 mm; Input 12-30 V dc
Analog: 0-10 V dc Discrete: PNP/NPN with IO-Link
5-pin M12 Integral QD
| Analog Output Configuration | 0-10 V dc |
|---|---|
| Connection | Integral QD |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Jam Detection | No |
| Laser Classification | Class 2 |
| Laser Control | Yes |
| Max Ambient Light (Lux) | up to 5000 lux |
| Min Operating Temperature (C) | -10.0 |
| Minimum Sensing Distance (mm) | 95.0 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Adjustments | Push Button; Remote Teach |
| Connection technology signal | Background/Foreground Suppression |
| Device type | Sensor |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Feature | Clear Object Detection, Quick Disconnect, Remote Teach, Timing (Hold/Delay) |
| Housing Style | Rectangular |
| Input/Output | Analog & Discrete |
| IO Link | Yes |
| Item Status | RELEASED |
| Network protocol | No |
| Number of pins | 4 |
| Operating voltage | 12-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | ABS |
| RS-232 | No |
| Sensing Beam | Visible Red Laser |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 3000.0 |
| Minimum Response Time (ms) | 0.5 |
Description
Q5X Series: Laser Adjustable Field
Range: 3000 mm; Input 12-30 V dc
Analog: 0-10 V dc Discrete: PNP/NPN with IO-Link
5-pin M12 Integral QD
