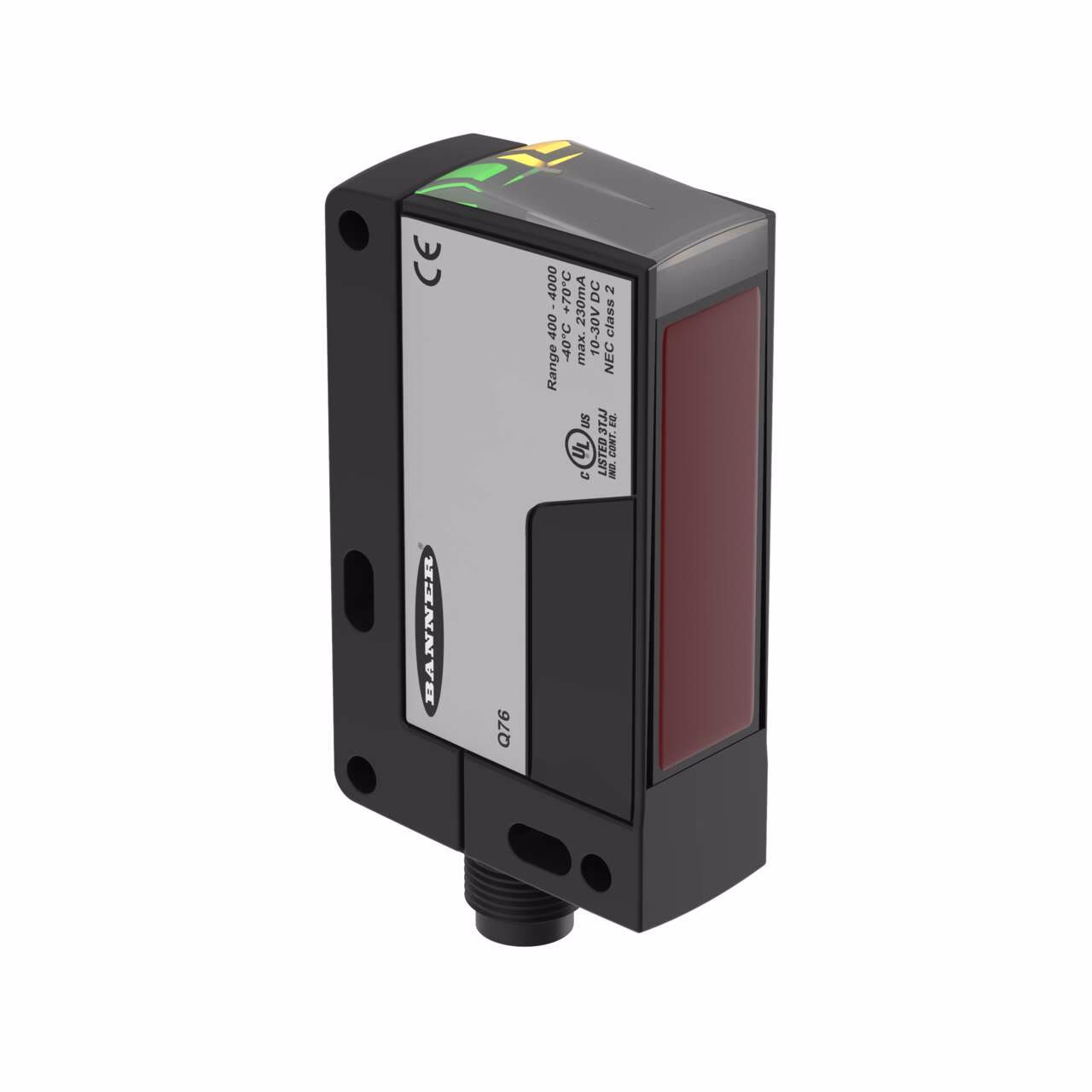

Q76E Series Wide Beam Retroreflective Sensor – Banner – Q76E-VN-ZLVC-Q8
Q76 Expert Wide Beam Non-Polarized Retro Area Detector
Range: 0.4 – 4 m; Input 10-30 V dc
Output: Complementary NPN
M12 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Outputs | NPN |
| Sensing Mode (General) | Retroreflective |
| Adjustments | Teach Button |
| Connection technology signal | Wide Beam Retroreflective (Non-Polarized) |
| DeviceNet | No |
| Feature | Clear Object Detection, Quick Disconnect, Washdown Rated |
| Homerun Exit Location | 2 |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Discrete |
| IO Link | No |
| Item Status | RELEASED |
| Lens Material | PMMA |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 620 |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 300 |
| Max Sensing Distance (mm) | 4000.0 |
| Max Op. Temp. (C) | 60 |
Description
Q76 Expert Wide Beam Non-Polarized Retro Area Detector
Range: 0.4 – 4 m; Input 10-30 V dc
Output: Complementary NPN
M12 Integral QD
