Q90R Series High Power Multipurpose Radar Sensors – Banner – Q90R2-12040-6KDQ

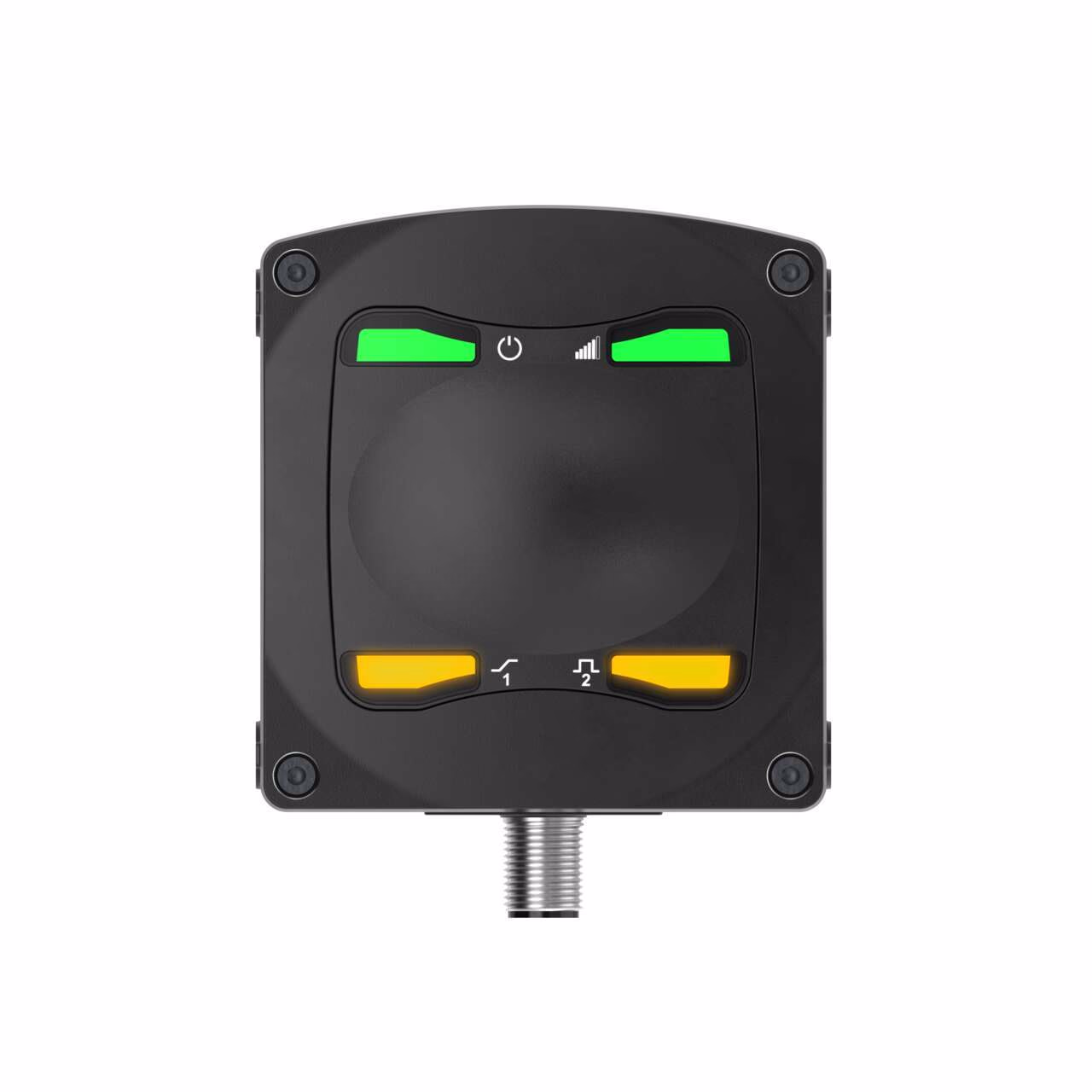

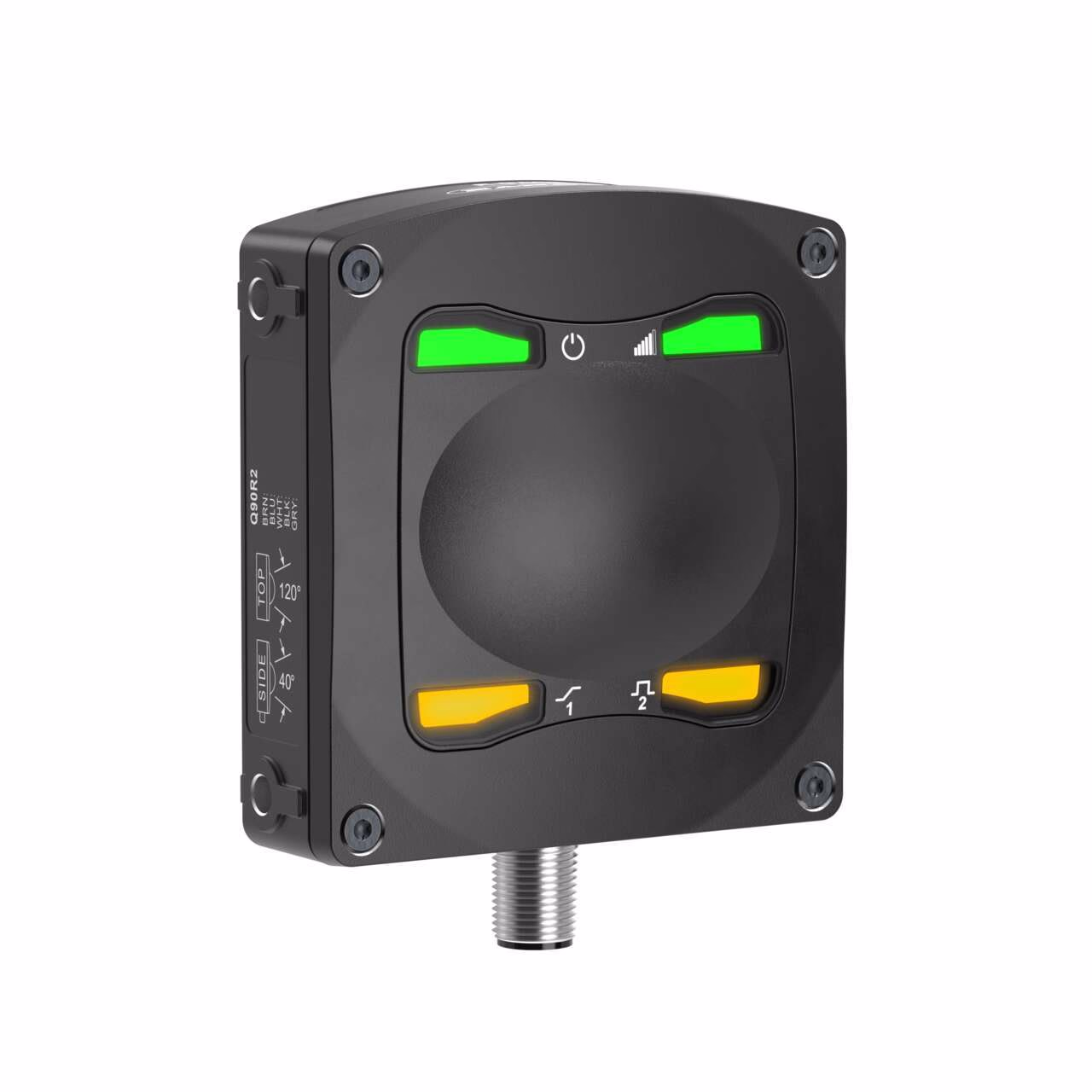

Q90R2 60 GHz R-GAGE Series Radar Sensor
Range: 150 mm-20 m; Input: 10-30 V dc
Output: 1 PNP/NPN with IO-Link Communication; 1 PNP/NPN
5-pin M12 Integral QD
| Connection | Integral QD |
|---|---|
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Jam Detection | No |
| Laser Control | No |
| Min Operating Temperature (C) | -40.0 |
| Minimum Sensing Distance (mm) | 150.0 |
| PC Configurable | No |
| PFM Output | Yes |
| Sensing Mode (General) | Proximity |
| Cert | Australia/New Zealand, Canada, European, US |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| EPLAN Original Sent Date | 02/14/2025 |
| EPLAN Status | Published |
| Feature | Clear Object Detection, Quick Disconnect, Remote Teach, Timing (Hold/Delay), Washdown Rated |
| Frequency band | 60 GHz |
| Housing Style | Flat Mount |
| Input/Output | Discrete |
| IO Link | Yes |
| Item Status | RELEASED |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Receptacle housing material B | Aluminum |
| RS-232 | No |
| Sensing Beam | Radar |
| Max Sensing Distance (mm) | 20000.0 |
| FOV Type | Configurable |
Description
Q90R2 60 GHz R-GAGE Series Radar Sensor
Range: 150 mm-20 m; Input: 10-30 V dc
Output: 1 PNP/NPN with IO-Link Communication; 1 PNP/NPN
5-pin M12 Integral QD
