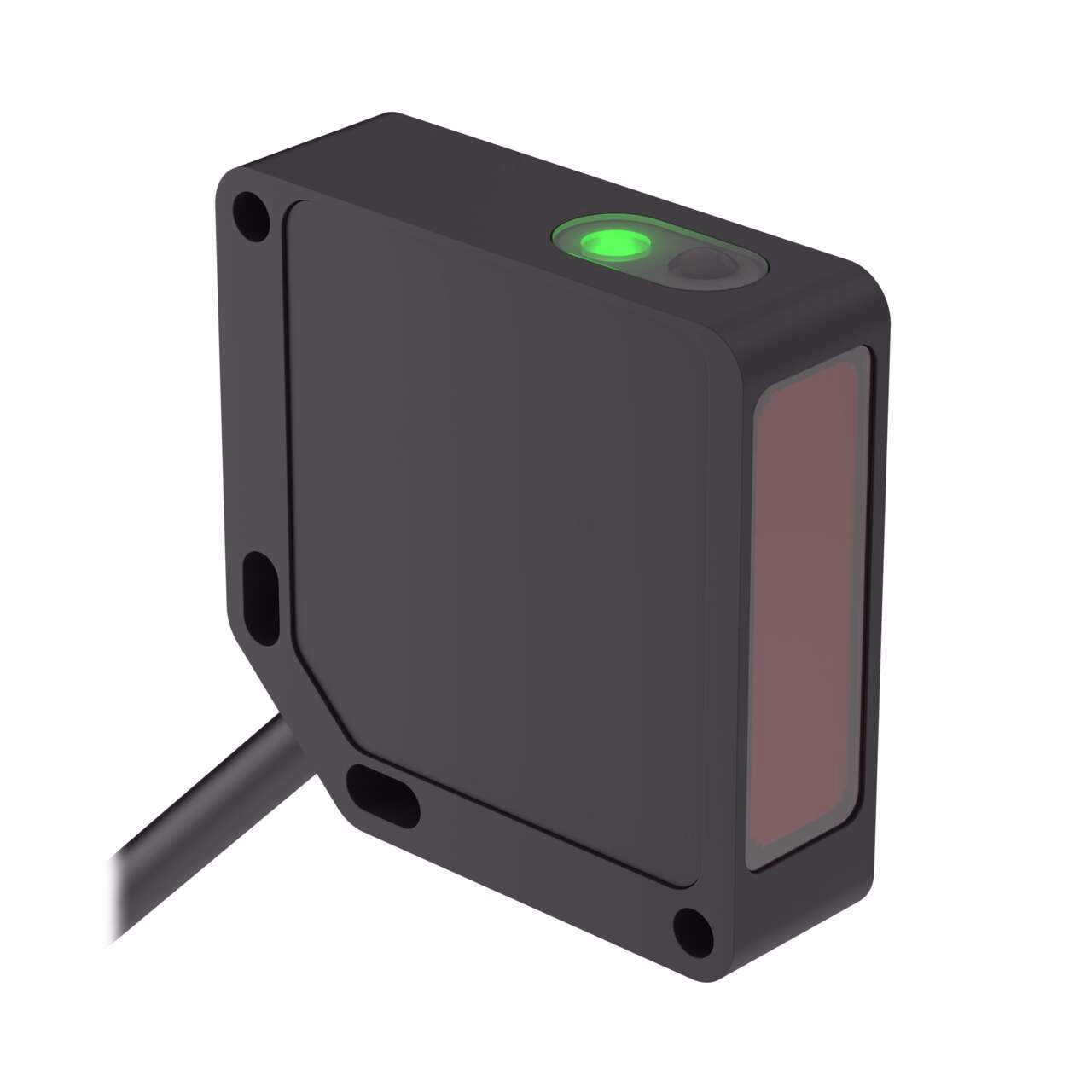

QM42 & QMT42 Series Easy Mount Rectangular Housing Sensor – Banner – QM426E
QM42 Series: Emitter
Range: 10 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Emitter |
| DeviceNet | No |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 2 |
| Operating voltage | 10-30 V dc |
| Opposed Mode Emitter/Receiver | Emitter |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Zinc Alloy Die-Cast |
| Sensing Beam | Infrared LED |
| Sensing Beam Wavelength | 880 |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 6 |
| Slot width (mm) | 2 |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 10000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
Description
QM42 Series: Emitter
Range: 10 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) Cable
