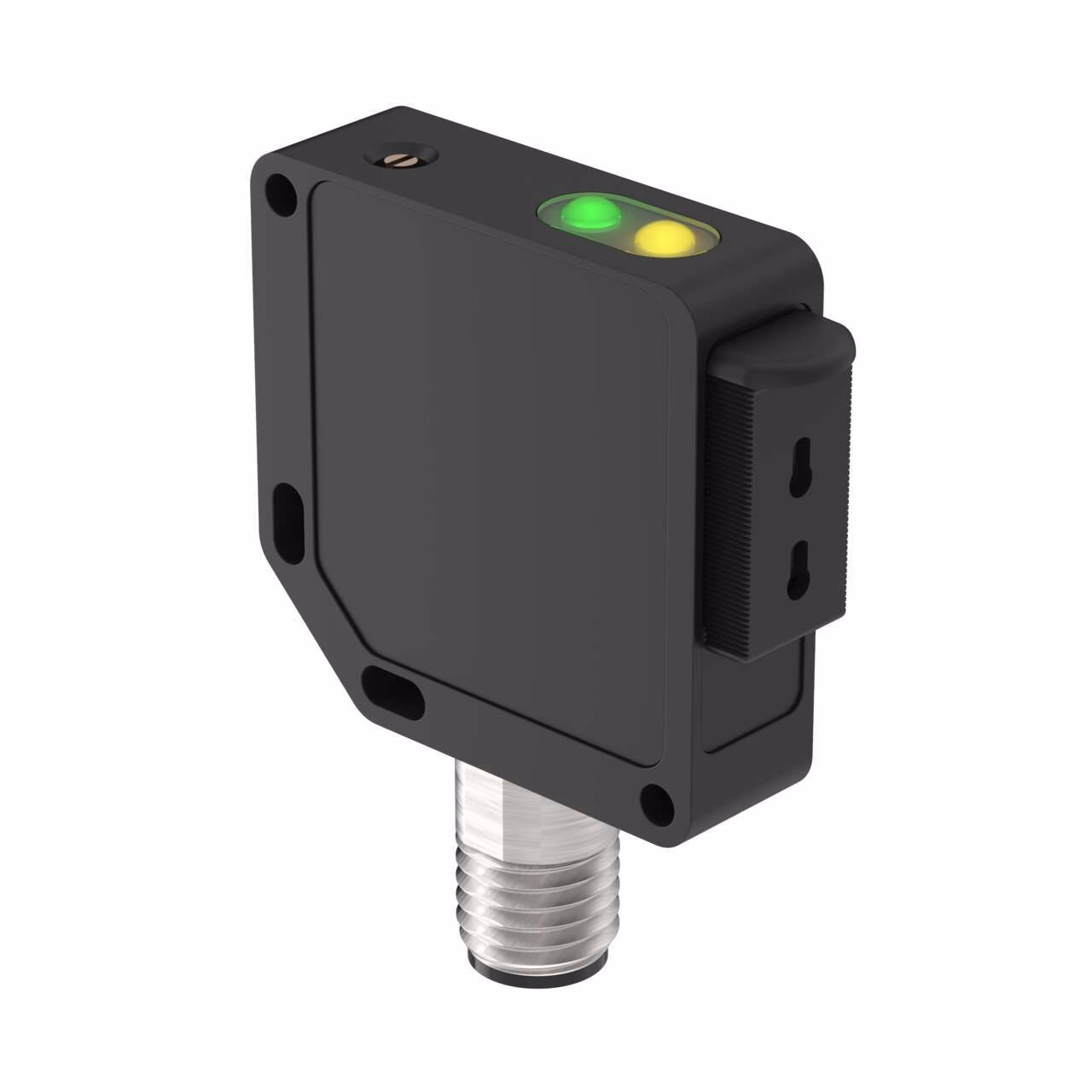

QM42 Series IP67 Rated Fiber Optic Amplifier – Banner – QM42VP6FPQ
QM42 Series: Plastic Fiber Optic
Range: Depends on Fiber; Input: 10-30 V dc
Output: SPDT (Complementary) PNP
4-pin M12 Integral QD
| Accepts Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
|---|---|
| Color LED - Amplifiers | Red |
| Connection | Integral QD |
| Feature: Audible | No |
| Fiber Type | Plastic and Glass |
| Indicator Display Type | Indicator LEDs |
| Output Type (Specific) | Single Discrete |
| Power Supply/Supply Voltage | 10-30 V dc |
| Adjustments | Potentiometer |
| Feature | Quick Disconnect |
| Housing material | Metal |
| Housing Style | Rectangular |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Number of pins | 4 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Zinc Alloy Die-Cast |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Op. Temperature (C) | 70 |
| Max op. relative humidity (%).1 | 90% @ 50°C |
| Minimum Response Time (ms) | 0.25 |
| Setting option | PNP |
Description
QM42 Series: Plastic Fiber Optic
Range: Depends on Fiber; Input: 10-30 V dc
Output: SPDT (Complementary) PNP
4-pin M12 Integral QD
