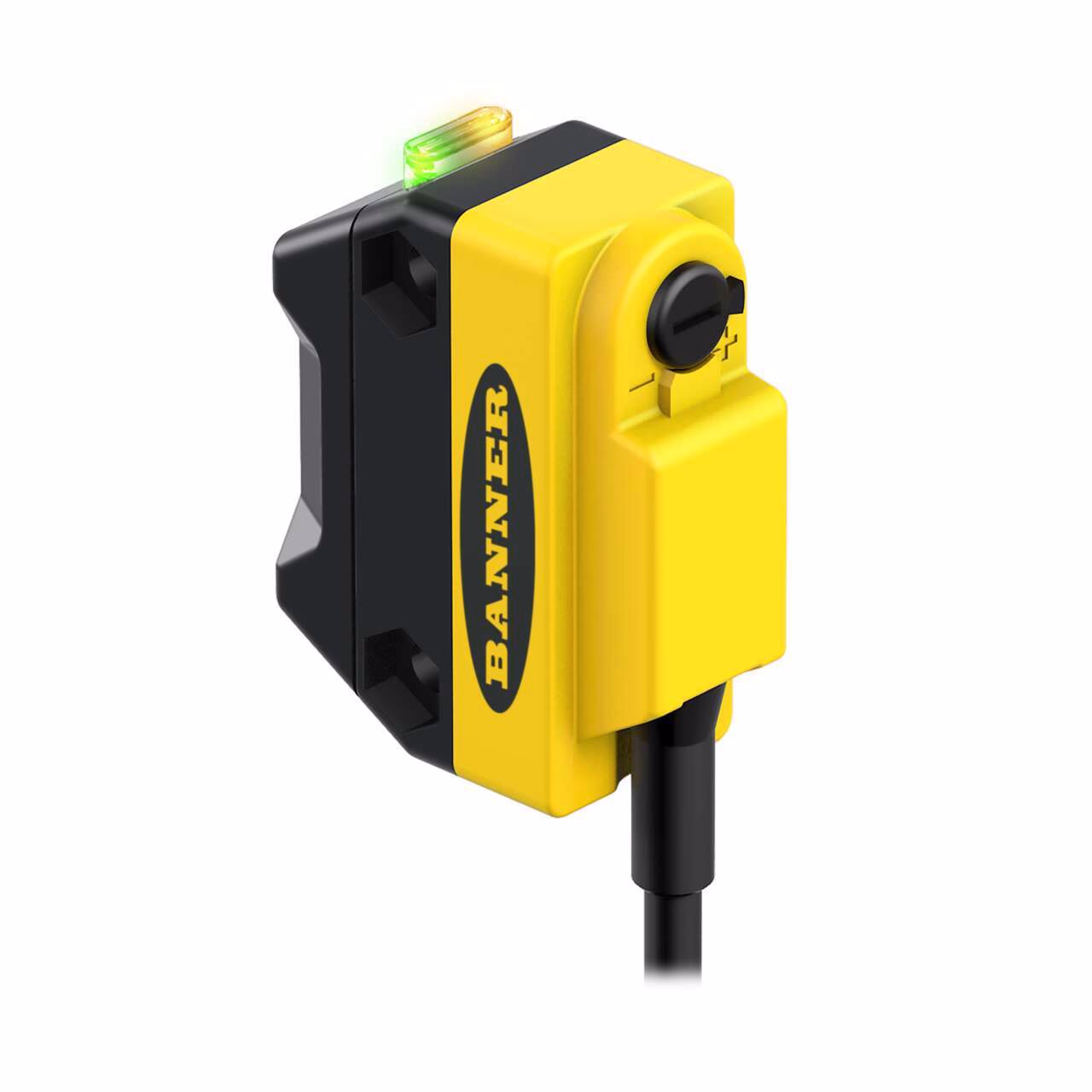

QS18 Series All Purpose Fiber Optic Amplifier – Banner – QS18VN6FPQ
WORLD-BEAM: Plastic Fiber Optic
Range: Depends on Fiber; Input: 10-30 V dc
Output: NPN
6 in Pigtail M8 QD
| Accepts Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
|---|---|
| Color LED - Amplifiers | Red |
| Connection | Pigtail QD |
| Feature: Audible | No |
| Fiber Type | Plastic and Glass |
| Indicator Display Type | Indicator LEDs |
| Output Type (Specific) | Single Discrete |
| Power Supply/Supply Voltage | 10-30 V dc |
| Adjustments | Potentiometer |
| Feature | Quick Disconnect |
| Housing material | Thermoplastic |
| Housing Style | Rectangular |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| IO Link | No |
| Item Status | RELEASED |
| Number of pins | 4 |
| Port | M8 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 6 |
| Slot width (mm) | 0.15 |
| Delay at Power-up (ms) | 100 |
| Max Op. Temperature (C) | 70 |
| Max op. relative humidity (%).1 | 95% @ 50°C |
| Minimum Response Time (ms) | 0.6 |
| Setting option | NPN |
Description
WORLD-BEAM: Plastic Fiber Optic
Range: Depends on Fiber; Input: 10-30 V dc
Output: NPN
6 in Pigtail M8 QD
