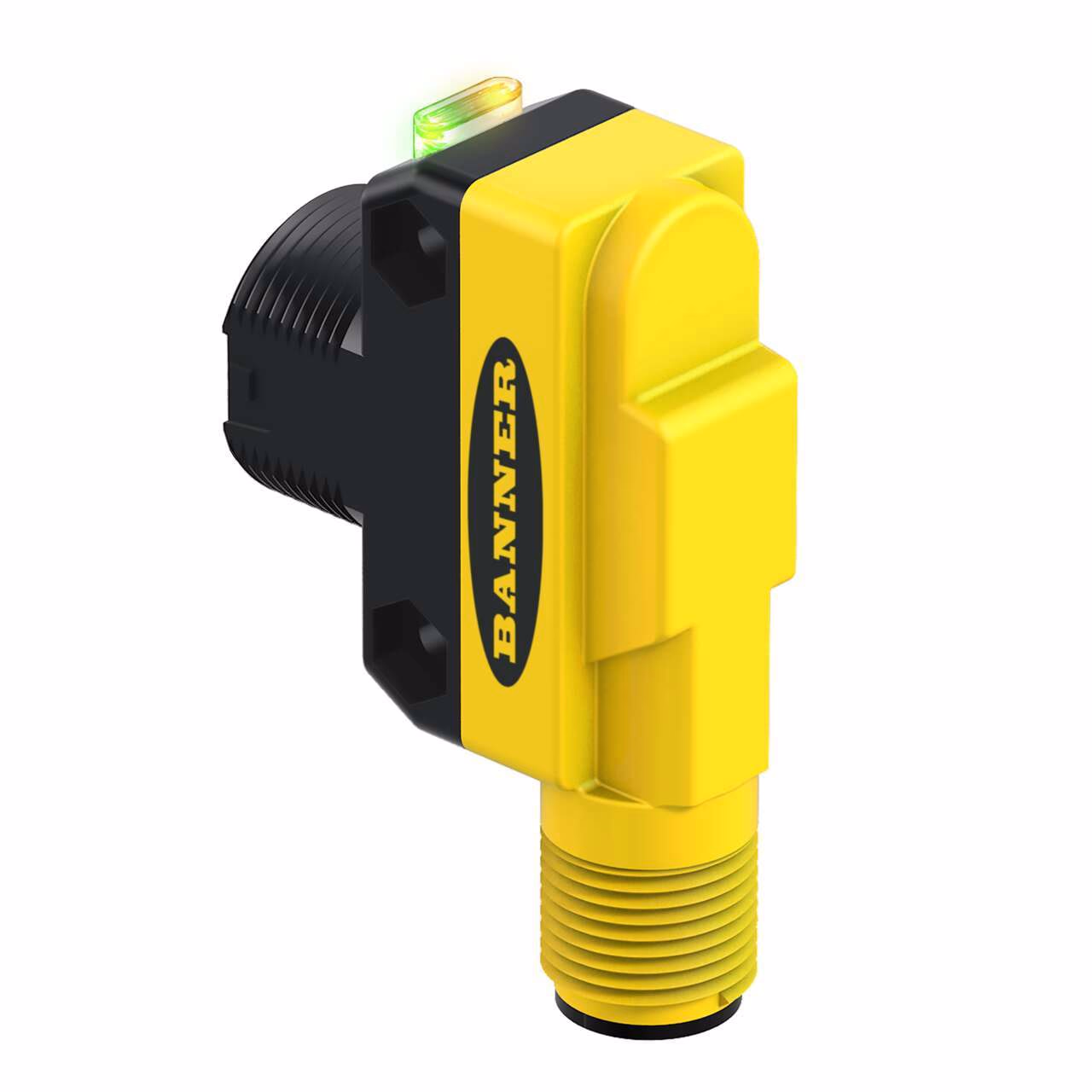

QS18 Series All Purpose Photoelectric Sensor – Banner – QS18EK6EVQ8
WORLD-BEAM QS18 Series: Visible Red Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Sensing Mode (General) | Opposed |
| Adjustments | Teach Button |
| Connection technology signal | Emitter |
| DeviceNet | No |
| EPLAN Original Sent Date | 06/06/2024 |
| EPLAN Status | Published |
| Feature | Quick Disconnect |
| Housing Style | Rectangular w/M18 Mount |
| Indicator | LEDs |
| IO Link | Yes |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Opposed Mode Emitter/Receiver | Emitter |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | ABS |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 630 |
| Min Op. Temperature (C) | -20.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 20000.0 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Barrel Diameter (mm) | 18.0 |
| Repeatability (µs) | 100 |
Description
WORLD-BEAM QS18 Series: Visible Red Emitter
Range: 20 m; Input: 10-30 V dc
Output: Not Applicable
M12 Integral QD
