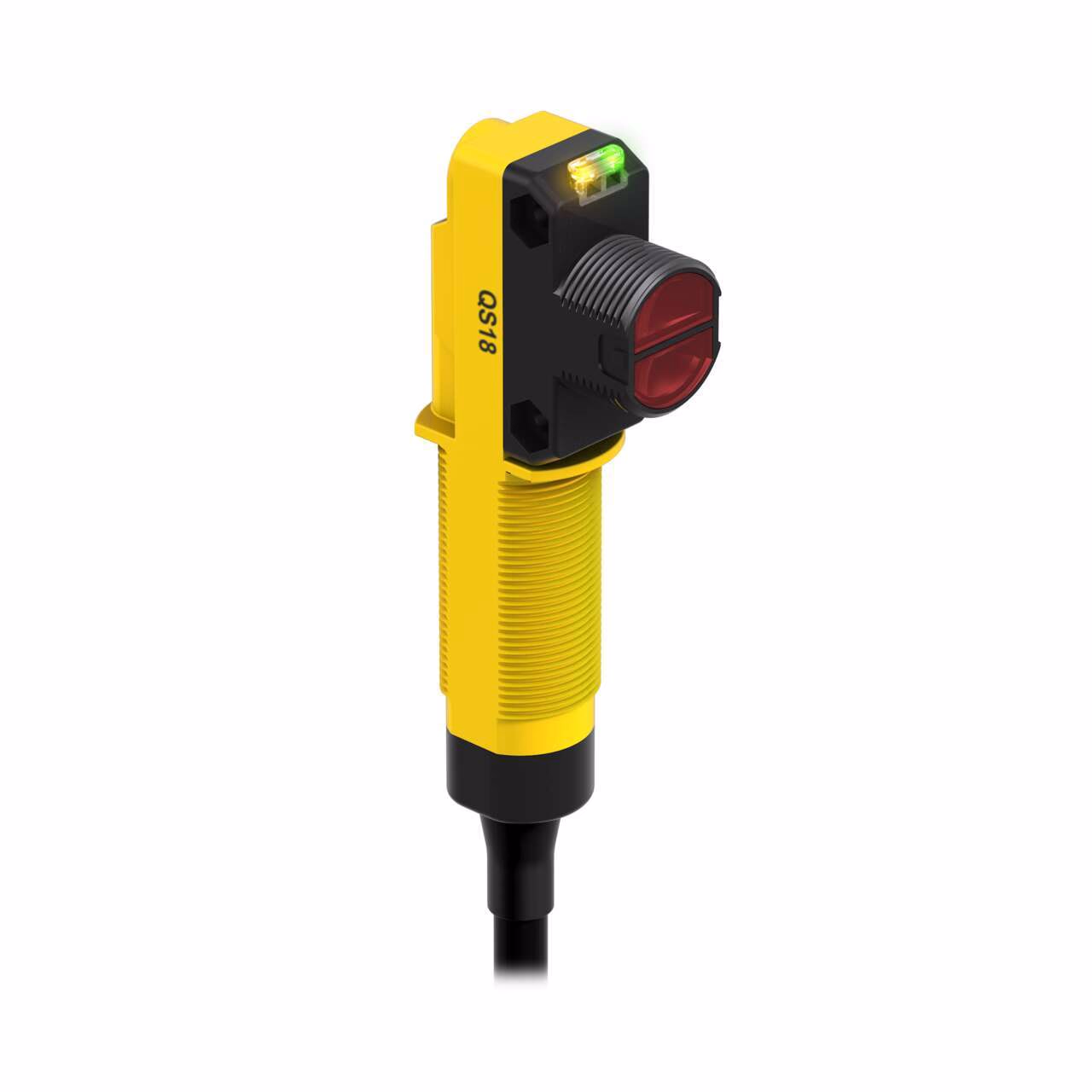

QS18 Series All Purpose Photoelectric Sensor – Banner – QS18RPWDXLQ2
WORLD-BEAM QS18 Univ Volt; Diffuse: Infrared
Range: 1 m; Input: 20-140 V ac/dc
Output: D.O. P-MOSFET (Sourcing)
150 mm (6 in) Micro Pigtail QD
| Connection | Pigtail QD |
|---|---|
| Feature: Audible | No |
| Outputs | P-MOSFET (Sourcing) |
| Sensing Mode (General) | Proximity |
| Adjustments | Potentiometer |
| Connection technology signal | Diffuse |
| DeviceNet | No |
| EPLAN Original Sent Date | 06/06/2024 |
| EPLAN Status | Published |
| Feature | Quick Disconnect |
| Homerun Exit Location | 8.3 |
| Housing Style | Rectangular w/M18 Mount |
| Indicator | LEDs |
| Input/Output | Discrete |
| IO Link | No |
| Item Status | RELEASED |
| Lens Material | PMMA |
| Number of pins | 4 |
| Operating voltage | 20-140 V ac/dc |
| Operation | Dark Operate |
| Port | 1/2 in. (Micro) |
| Power Good Output | AC/DC Universal |
| Protection class shaft | IP67 |
| Receptacle housing material B | ABS |
| Sensing Beam | Infrared LED |
| Min Op. Temperature (C) | -25 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 0.15 |
| Delay at Power-up (ms) | 100ms dc, 300ms ac |
| Max Sensing Distance (mm) | 1000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 95% @ 55°C |
| Barrel Diameter (mm) | 18 |
| Repeatability (µs) | 1500 |
Description
WORLD-BEAM QS18 Univ Volt; Diffuse: Infrared
Range: 1 m; Input: 20-140 V ac/dc
Output: D.O. P-MOSFET (Sourcing)
150 mm (6 in) Micro Pigtail QD
