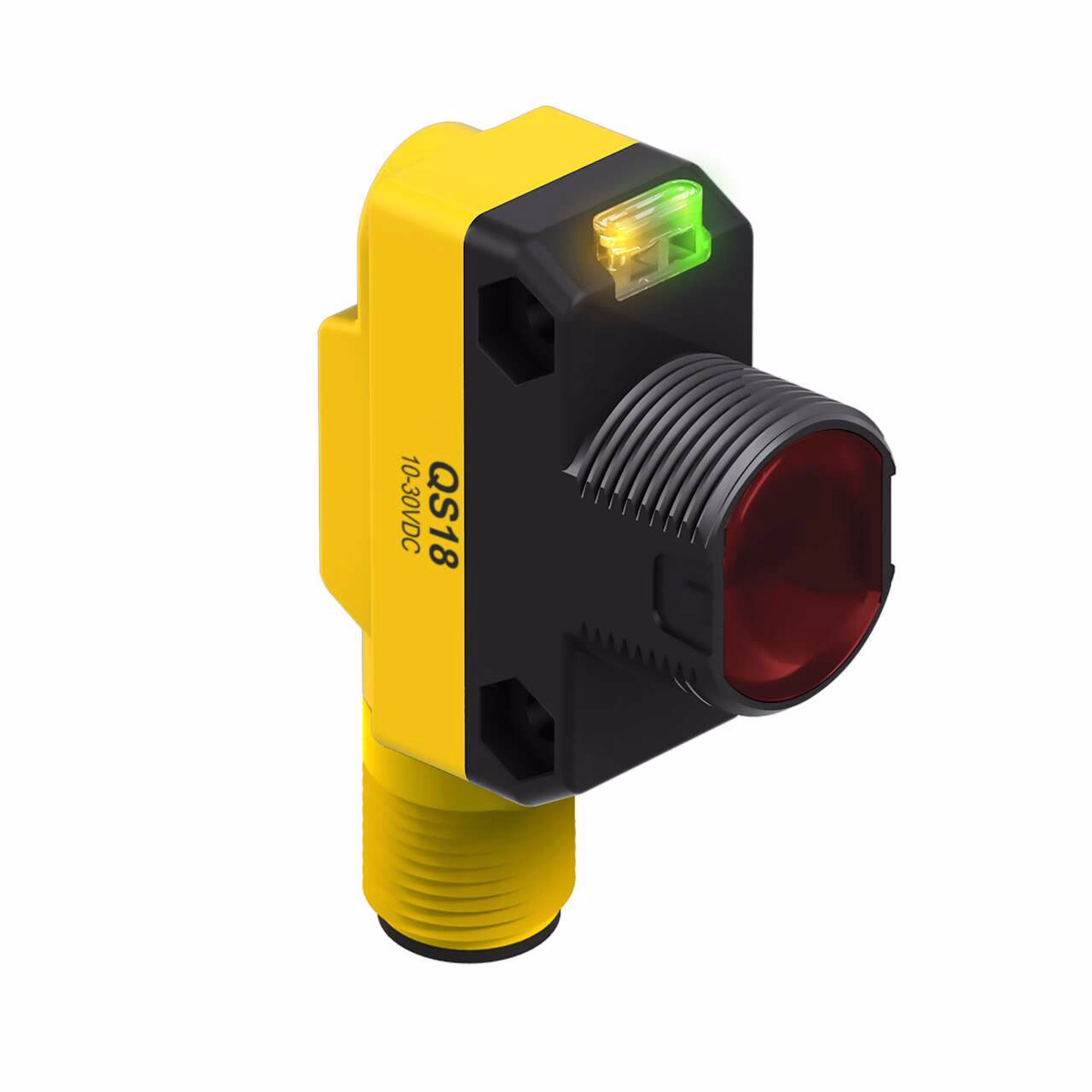

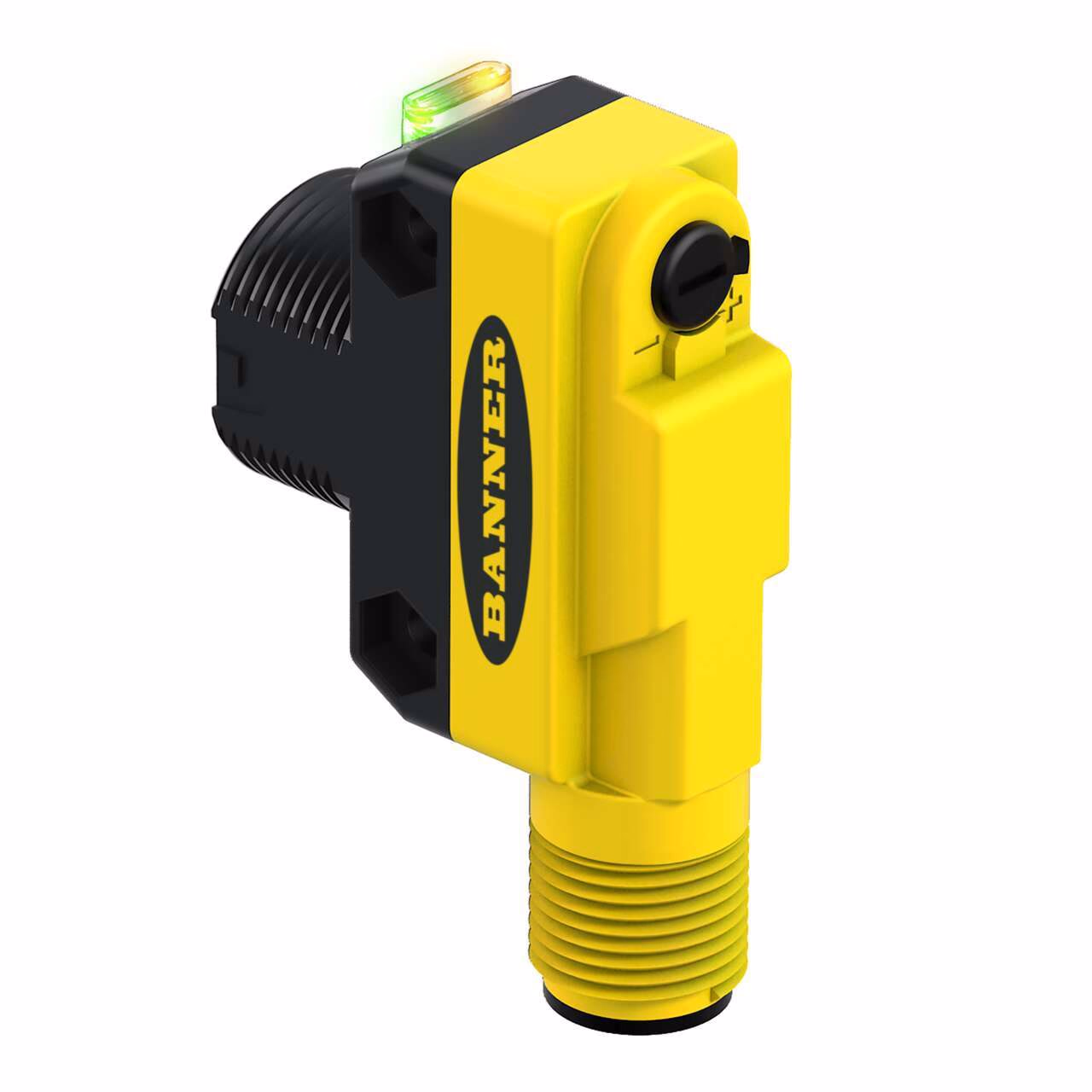

QS18 Series All Purpose Photoelectric Sensor – Banner – QS18VP6XLPQ8
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: Complementary PNP
M12 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Outputs | PNP |
| Sensing Mode (General) | Retroreflective |
| Adjustments | Potentiometer |
| Connection technology signal | Polarized (Coaxial) |
| DeviceNet | No |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Feature | Clear Object Detection, Quick Disconnect |
| Homerun Exit Location | 0.4 |
| Housing Style | Rectangular w/M18 Mount |
| Indicator | LEDs |
| Input/Output | Discrete |
| IO Link | No |
| Item Status | RELEASED |
| Lens Material | PMMA |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | ABS |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 625 |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 3000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Barrel Diameter (mm) | 18 |
Description
QS18 Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: Complementary PNP
M12 Integral QD
