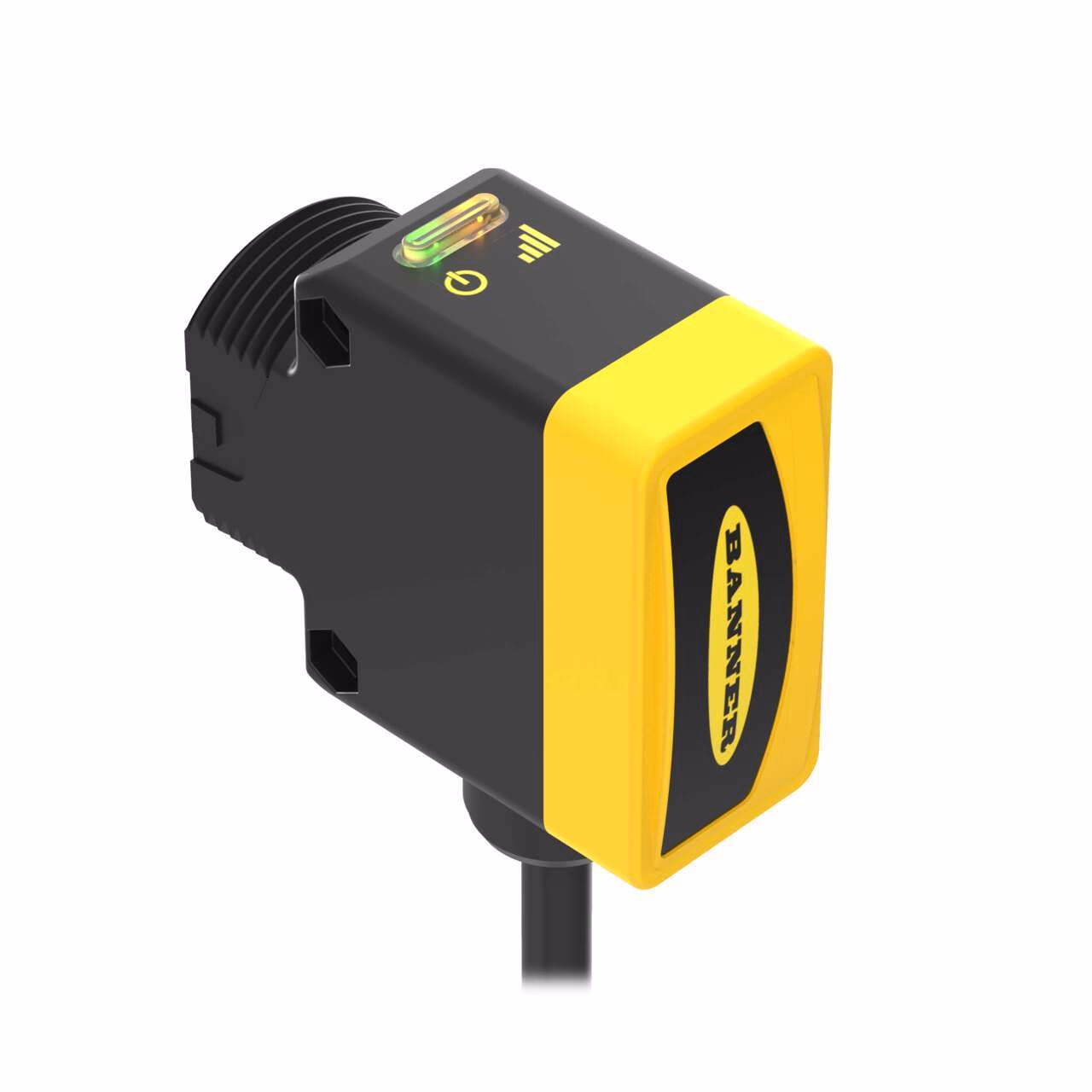

QS30 Series High-Performance Long-Range Sensor – Banner – QS303E
WORLD-BEAM QS30 Series: Universal Voltage
Range: 60 m; Input: 12-250 V dc or 24-250 V ac
Output: Not Applicable
2 m (6.5 ft) Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Emitter |
| DeviceNet | No |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Homerun Exit Location | 15 |
| Housing Style | Rectangular w/M30 Mount |
| Indicator | LEDs |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 2 |
| Operating voltage | 12-250 V dc / 24-250 V ac |
| Opposed Mode Emitter/Receiver | Emitter |
| Power Good Output | AC/DC Universal |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 2 |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 60000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Barrel Diameter (mm) | 30 |
Description
WORLD-BEAM QS30 Series: Universal Voltage
Range: 60 m; Input: 12-250 V dc or 24-250 V ac
Output: Not Applicable
2 m (6.5 ft) Cable
