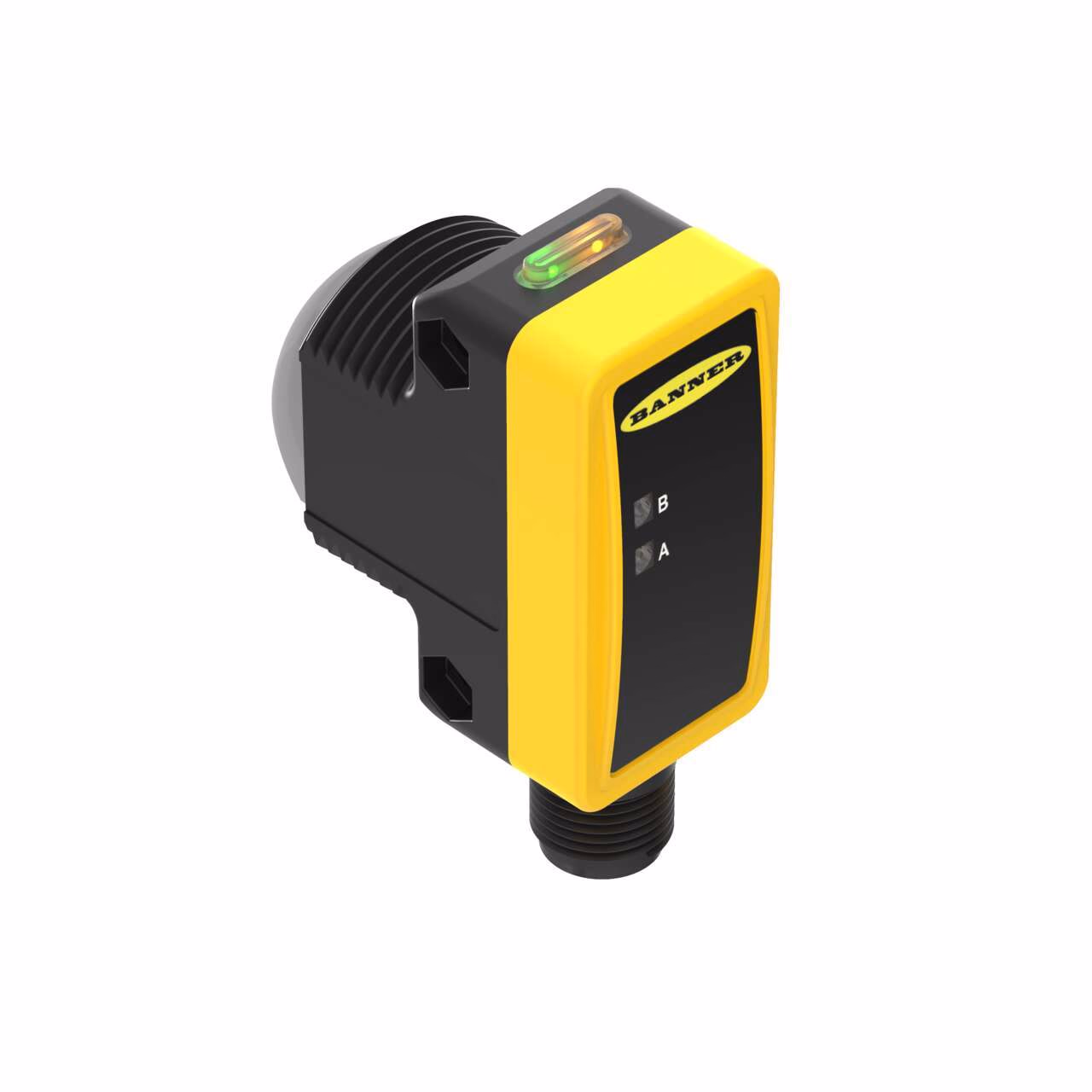

QS30 Series High-Performance Long-Range Sensor – Banner – QS30EXQ
WORLD-BEAM QS30 Series: High-Powered Emitter
Range: 213 m; Input: 10-30 V dc
Output: Not Applicable
5-pin M12 QD (CAR WASH)
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Emitter |
| DeviceNet | No |
| EPLAN Original Sent Date | 12/08/2021 |
| EPLAN Status | Published |
| Feature | Encapsulated, Quick Disconnect, Washdown Rated |
| Homerun Exit Location | 30 |
| Housing Style | Rectangular w/M30 Mount |
| Indicator | LEDs |
| Item Status | RELEASED |
| Lens Material | Zeonex |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Opposed Mode Emitter/Receiver | Emitter |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP69K |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Sensing Beam Wavelength | 875 |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 213000 |
| Max Op. Temp. (C) | 60 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Barrel Diameter (mm) | 30 |
| Repeatability (µs) | 5000 |
Description
WORLD-BEAM QS30 Series: High-Powered Emitter
Range: 213 m; Input: 10-30 V dc
Output: Not Applicable
5-pin M12 QD (CAR WASH)
