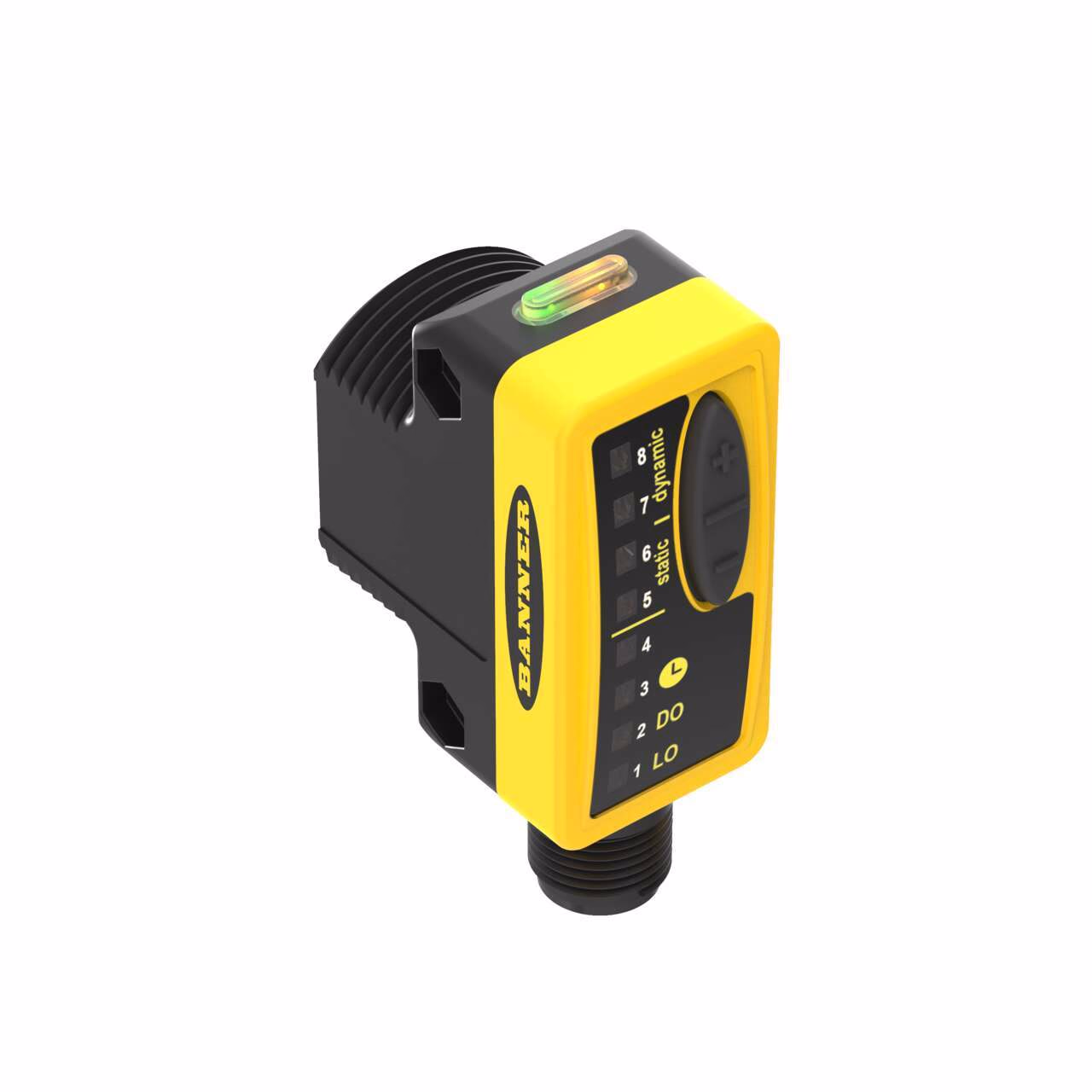

QS30 Series High-Performance Long-Range Sensor – Banner – QS30LDLQ
WORLD-BEAM QS30 Series: Laser Diffuse (Class 2)
Range: 800 mm; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
5-pin M12 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Laser Classification | Class 2 |
| Outputs | Bipolar (NPN & PNP) |
| Sensing Mode (General) | Proximity |
| Adjustments | Teach Button |
| Connection technology signal | Diffuse |
| DeviceNet | No |
| EPLAN Original Sent Date | 11/25/2020 |
| EPLAN Status | Published |
| Feature | Quick Disconnect, Timing (Hold/Delay) |
| Homerun Exit Location | 0.5 |
| Housing Style | Rectangular w/M30 Mount |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red Laser |
| Sensing Beam Wavelength | 658 |
| Min Op. Temperature (C) | -10 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 1000 |
| Max Sensing Distance (mm) | 800 |
| Max Op. Temp. (C) | 50 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Barrel Diameter (mm) | 30 |
| Repeatability (µs) | 70 |
| Small Visible Spot | Laser |
| Special feature | Remote Teach |
Description
WORLD-BEAM QS30 Series: Laser Diffuse (Class 2)
Range: 800 mm; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
5-pin M12 Integral QD
