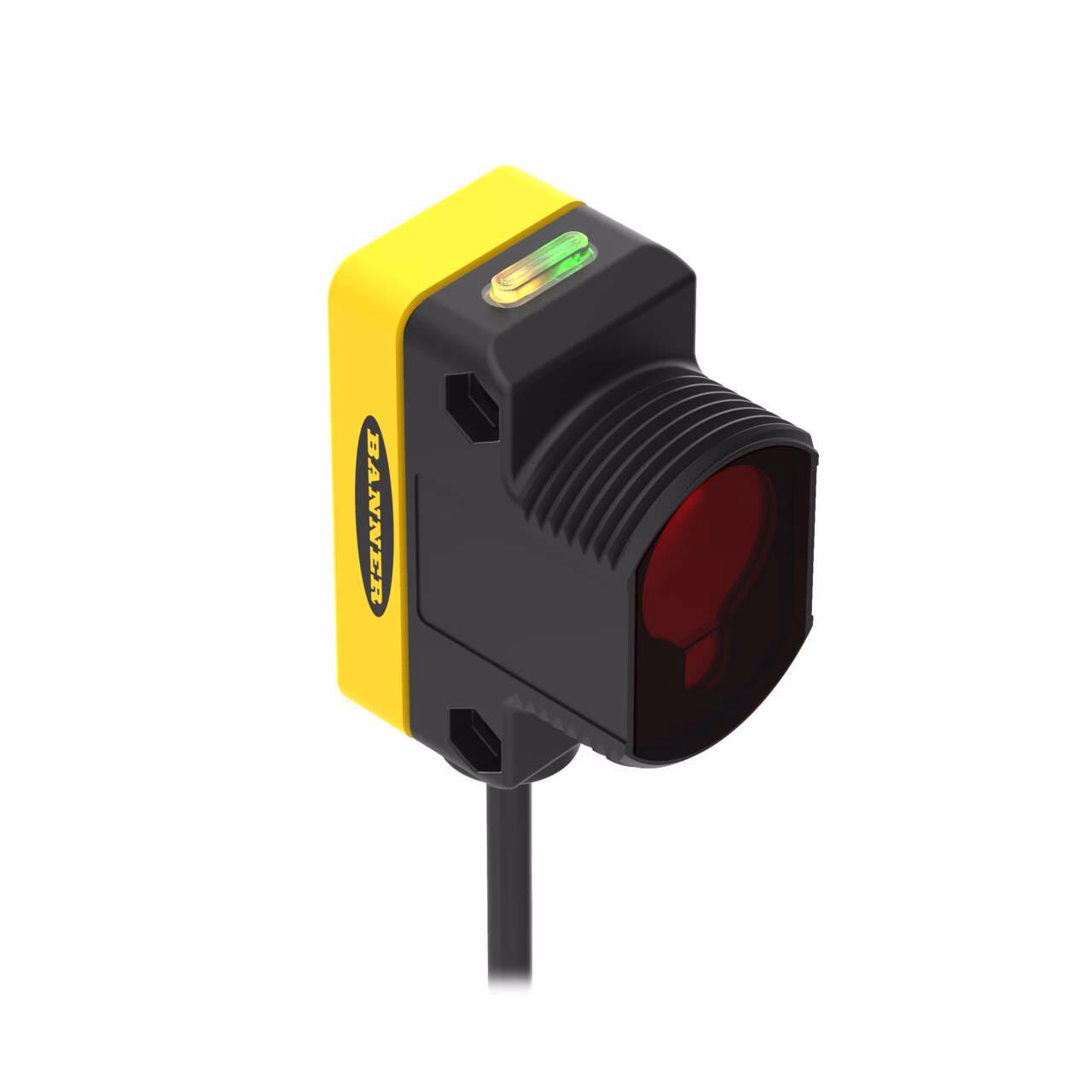

QS30 Series High-Performance Long-Range Sensor – Banner – QS30LLPC
WORLD-BEAM QS30: Low Contrast Laser Polar Retro
Range: 0.2-18 m; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1PNP
2 m (6.5 ft) Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Laser Classification | Class 1 |
| Outputs | Bipolar (NPN & PNP) |
| Sensing Mode (General) | Retroreflective |
| Adjustments | Teach Button |
| Connection technology signal | Polarized |
| DeviceNet | No |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Homerun Exit Location | 0.5 |
| Housing Style | Rectangular w/M30 Mount |
| Indicator | Bargraph |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red Laser |
| Sensing Beam Wavelength | 650 |
| Min Op. Temperature (C) | -10 |
| NEMA / UL Type Rating | NEMA 6 |
| Slot width (mm) | 2 |
| Delay at Power-up (ms) | 1000 |
| Max Sensing Distance (mm) | 18000 |
| Max Op. Temp. (C) | 50 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Barrel Diameter (mm) | 30 |
| Small Visible Spot | Laser |
| Special feature | Remote Teach |
Description
WORLD-BEAM QS30: Low Contrast Laser Polar Retro
Range: 0.2-18 m; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1PNP
2 m (6.5 ft) Cable
