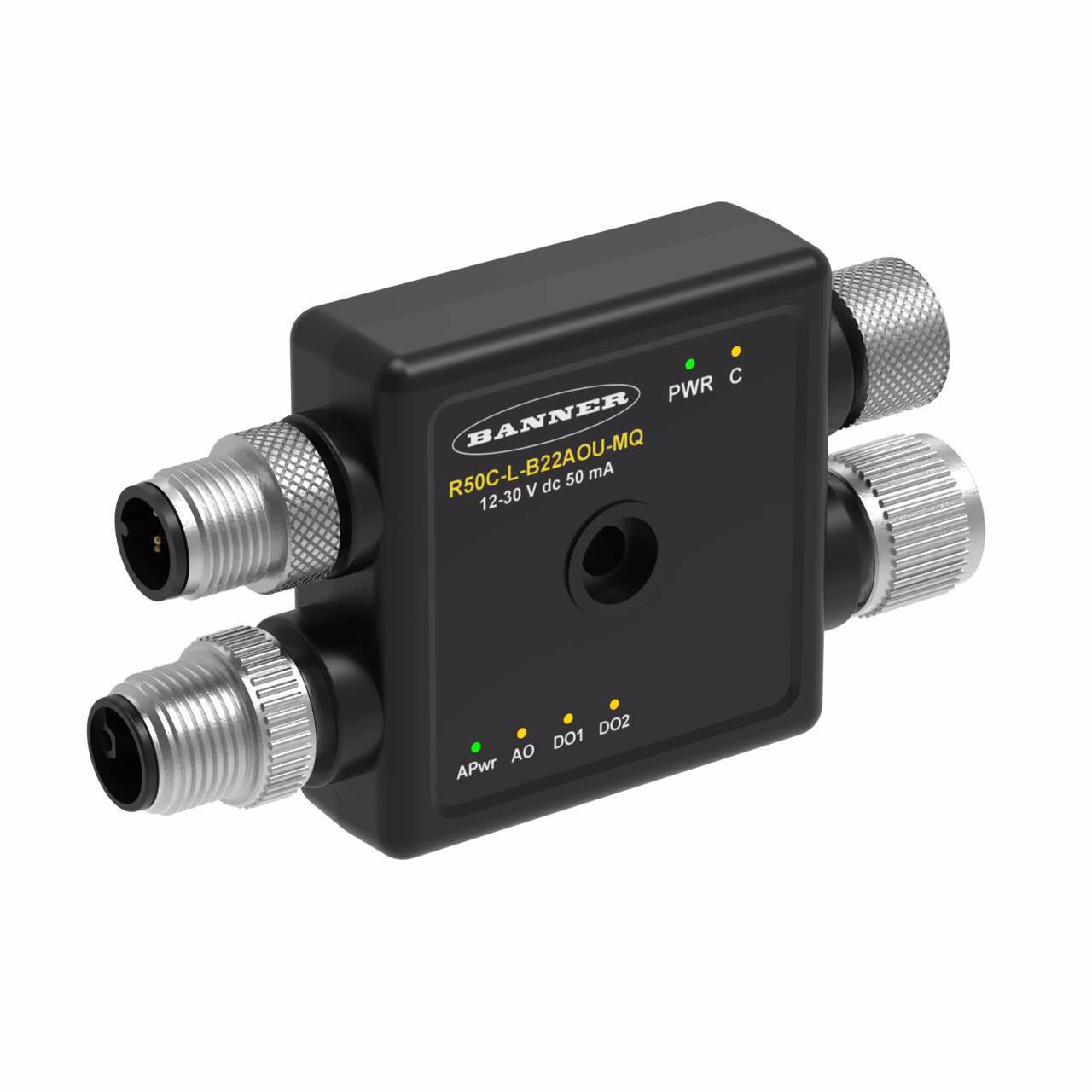

R50C Motor-Driven Roller Controller – Banner – R50C-L-B22AOU-MQ
R50C Series: ModBus Communications
Bimodal Discrete I/O (PNP)(NPN), Analog Out (Voltage)
5-pin L-Code (Male/Female), 5-pin A-Code(Male), 5-pin A-Code(Female), M12 QD
| Connector 2 Gender | Male |
|---|---|
| Connector B | Female |
| EPLAN Original Sent Date | 12/07/2024 |
| EPLAN Status | Published |
| IO Link | No |
| Item Status | RELEASED |
| Modbus RTU | No |
| Operating voltage | 12-30 V dc |
| Protection class shaft | IP65, IP67, IP68 |
| Setting option | Analog Voltage |
| Signal type | Discrete Input & Output |
| IO-Link Device | No |
| Modbus Server | Yes |
| Connector 1 | Integral M12 |
| Function | Converter |
| IO-Link Master | No |
| Form Factor | R50 |
| Modbus Client | No |
| Device Size (mm) | 50 x 50 |
| Connector 1 Pin Count | 5.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 5.0 |
| Current | <400 mA |
Description
R50C Series: ModBus Communications
Bimodal Discrete I/O (PNP)(NPN), Analog Out (Voltage)
5-pin L-Code (Male/Female), 5-pin A-Code(Male), 5-pin A-Code(Female), M12 QD
