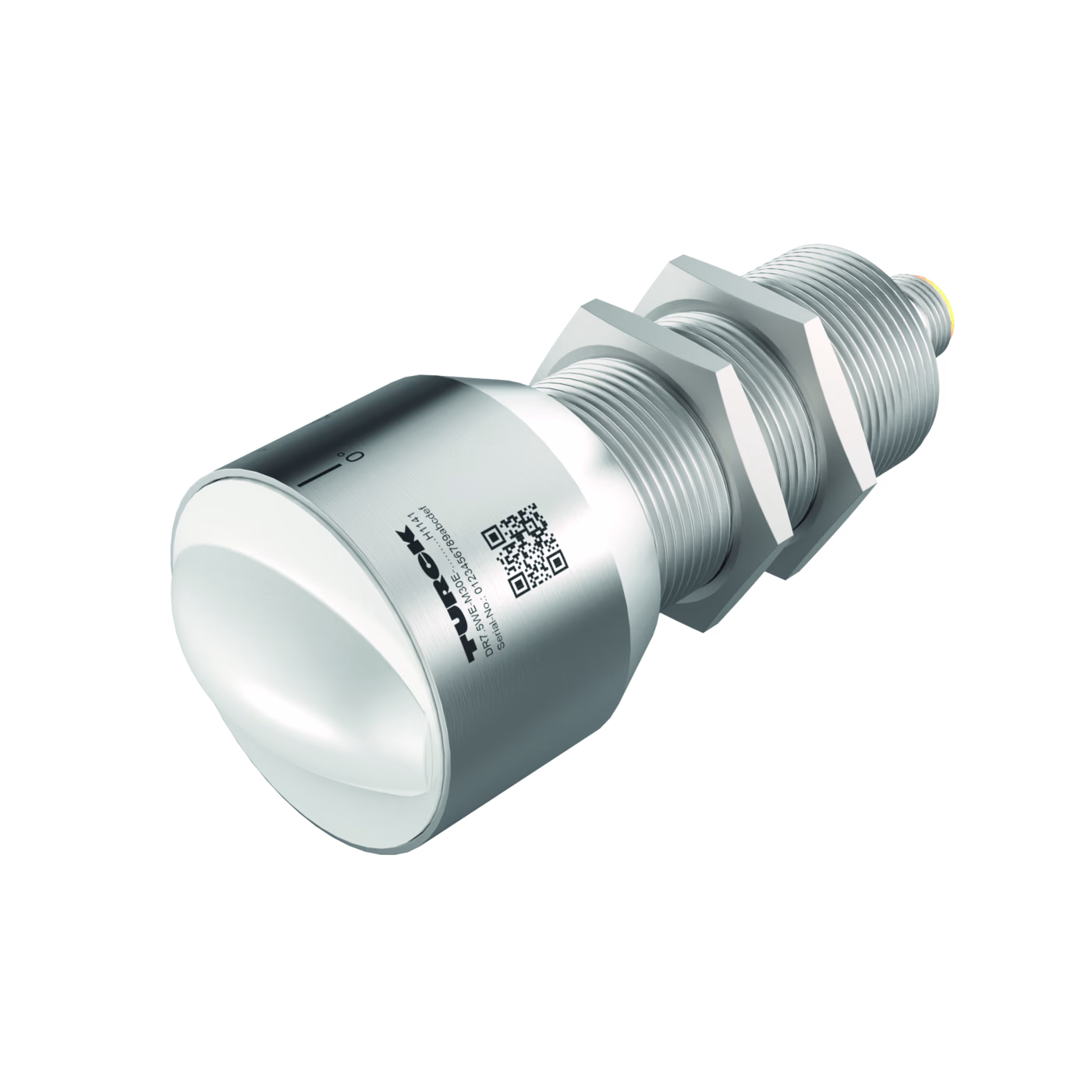

Radar Sensor DR7.5WE-M30E-2UPN8X2-H1141
Radar Sensor
| Ambient temperature max. (°C) | 65 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Communication protocol | IO-Link |
| Connector type | M12 × 1 |
| Design | Threaded barrel |
| Detection type | contactless |
| Dimensions | 44.7 mm x 113.9 mm |
| Electrical output | Connector |
| Function | Radar scanner |
| Housing material | Stainless steel |
| Housing quality | 1.4401 (AISI 316), PTFE |
| Max. range (mm) | 7500 |
| Measuring principle | Radar |
| Operating voltage | DC |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Switching element function | NO/NC programmable |
| Beam angle | 45°x15° |
| Cone angle (°) | 45 |
| Frequency range | 122 – 123 GHz |
| Resolution | 1 cm |
