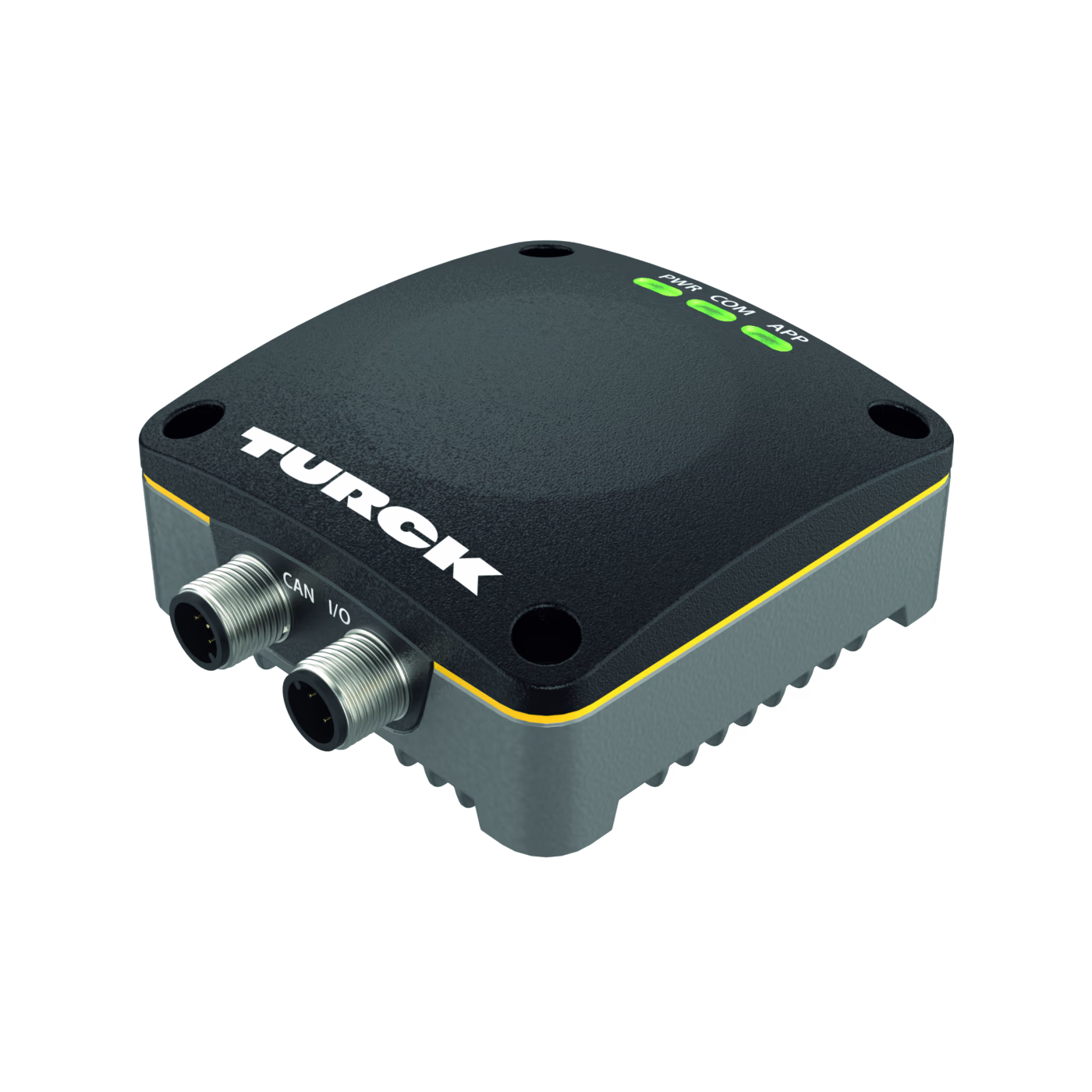

Radar Sensor MR15-Q80-IOLCJ-H1141
Radar Sensor
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Communication protocol | IO-Link, SAE J1939 |
| Connector type | M12 × 1 |
| Construction size | 90.6 x 80 x 34.6 mm |
| Design | Rectangular |
| Detection type | contactless |
| Dimensions | 90.6 mm x 80 mm x 34.6 mm |
| Electrical output | Connector |
| Function | Radar scanner |
| Housing material | Plastic |
| Housing quality | Die-cast aluminum alloy, PBT-GF20 |
| Max. range (mm) | 15000 |
| Measuring principle | Radar |
| Operating voltage | DC |
| Output function | PNP/NPN |
| Protection class | IP67 |
| Switching element function | NO/NC programmable |
| Beam angle | 120° |
| Cone angle (°) | 120 |
| Frequency range | 60…64 GHz |
| Resolution | 1 cm |
