Radar Sensor T30R-1515-KIQP
Radar Sensor
| Ambient temperature max. (°C) | 65 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Antenna connection | Internal, planar |
| Approvals | CE, UKCA, UL Listed |
| Cable length (m) | 150 |
| Communication protocol | IO-Link |
| Connector type | M12 × 1 |
| Design | Rectangular with thread |

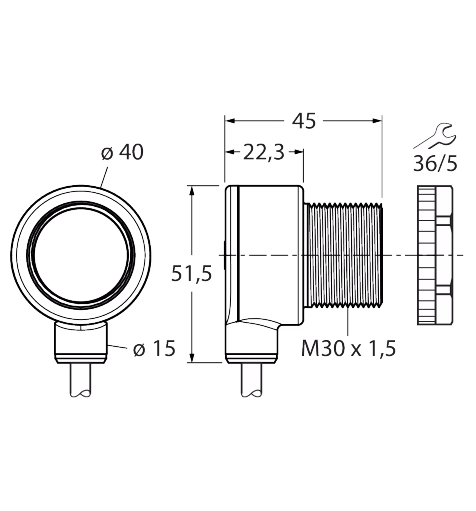

| Dimensions | 52.9 mm x 40.6 mm x 63.8 mm |
| Electrical output | Cable with connector |
| Frequency band | F band, ISM region |
| Frequency range | 122…123 GHz |
| Function | Proximity switch |
| Housing material | Plastic |
| Housing quality | PBT |
| Max. range (mm) | 15000 |
| Operating voltage | DC |
| Output function | Analog output, PNP/NPN |
| Protection class | IP67 |
| Setting option | Push Button, Vision Software and Firmware |
| Switching element function | NO/NC programmable |
