Radio Transmission System DX80N2Q45E
Radio Transmission System
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Antenna connection | Internal (wire loop) |
| Design | Rectangular |

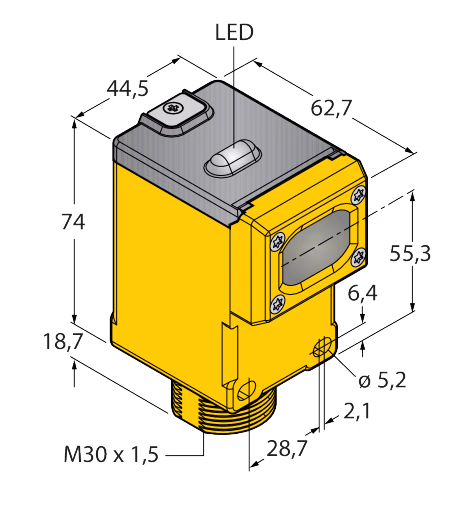

| Dimensions | 58.9 mm x 44.5 mm x 97.1 mm |
| Frequency band | 2.4-GHz ISM band |
| Frequency range | 2.402…2.483 GHz |
| Function | Opposed mode sensor |
| Housing material | Plastic |
| Housing quality | Lexan, PBT |
| Light type | Red |
| Max. range (mm) | 30000 |
| Operating mode | Emitter |
| Operating voltage | DC |
| Protection class | IP67 |
| Runs with battery | Yes |
| Special features | wireless |
| Wavelength (nm) | 680 |
