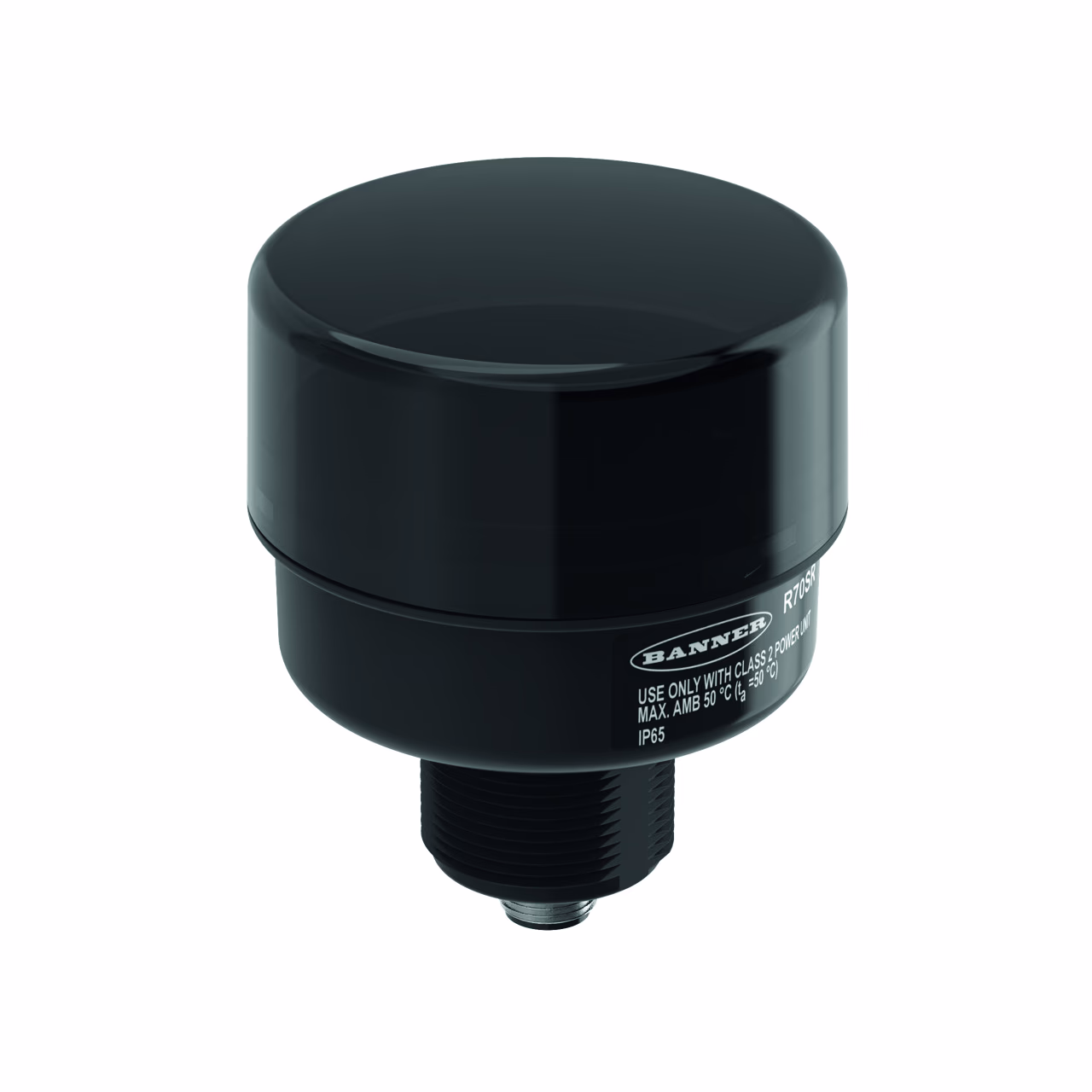

Radio Transmission System R70SR2MQ
Radio Transmission System
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Antenna connection | Internal (wire loop) |
| Approvals | ATEX, CE, CSA |
| Communication protocol | RS485 |
| Connector type | M12 × 1 |
| Design | Rectangular |

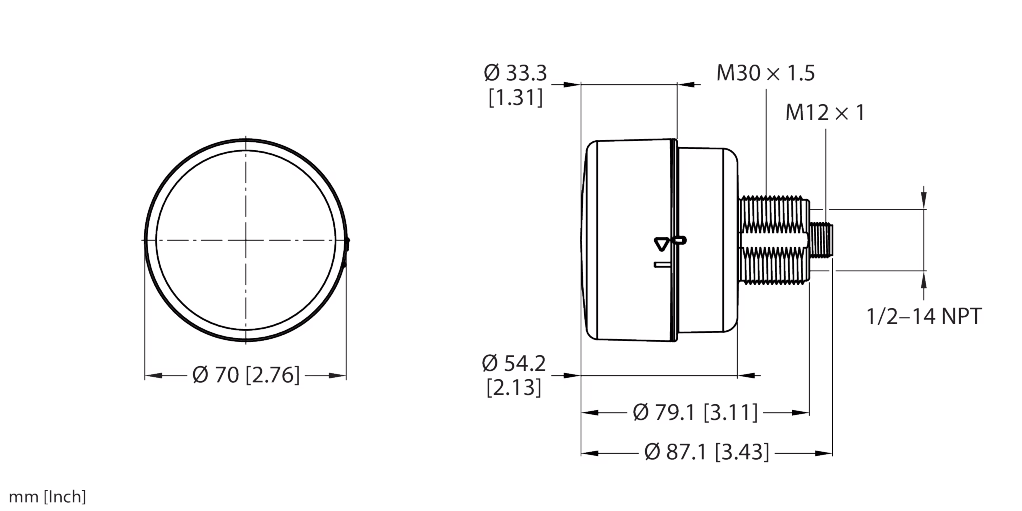

| Dimensions | 70 mm x x 87.1 mm |
| Electrical output | Connector |
| Frequency band | 2.4-GHz ISM band |
| Frequency range | 2.402…2.483 GHz |
| Function | Tree topology |
| Housing material | Plastic |
| Housing quality | PC |
| Max. range (mm) | 1000000 |
| Operating voltage | DC |
| Protection class | IP65 |
| Runs with battery | No |
