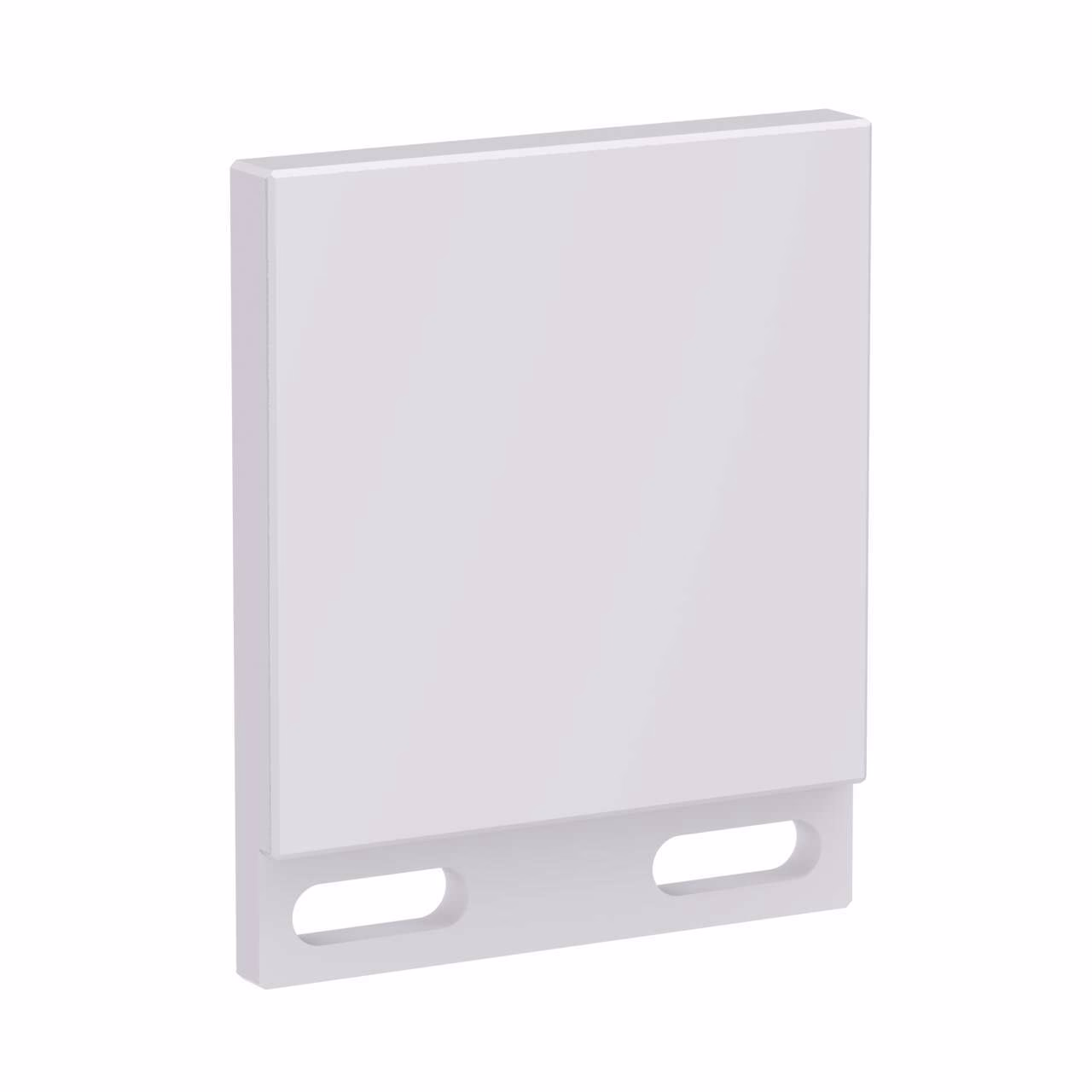

Reference Target Reflectors – Banner – BRT-Q4X-60X50
Reflector
Q4X Clear Object Detection
Rectangular 50 x 50 mm
Max Temp = 60 degree C
Reference targets are non-traditional retro-reflective targets. They are intended to provide a consistent and reliable background surface for Sensors to learn during the teach process
| Feature | Washdown Rated |
|---|---|
| Item Status | RELEASED |
| Quantity Included | 1.0 |
| Max Op. Temperature (C) | 60.0 |
| Reflective Dimensions | 50 x 50 mm |
| Reflective Material | Acetal Homopolymer (Delrin), White |
| Microprism | No |
| Shape | Rectangular |
| Mounting | Screw Hole |
| Laser Compatible | No |
| Polarized Sensing | No |
| Approximate Dimensions | 60 x 50 mm |
Description
Reflector
Q4X Clear Object Detection
Rectangular 50 x 50 mm
Max Temp = 60 degree C
Reference targets are non-traditional retro-reflective targets. They are intended to provide a consistent and reliable background surface for Sensors to learn during the teach process
