Ring Lights – Banner – LEDWR80X80M

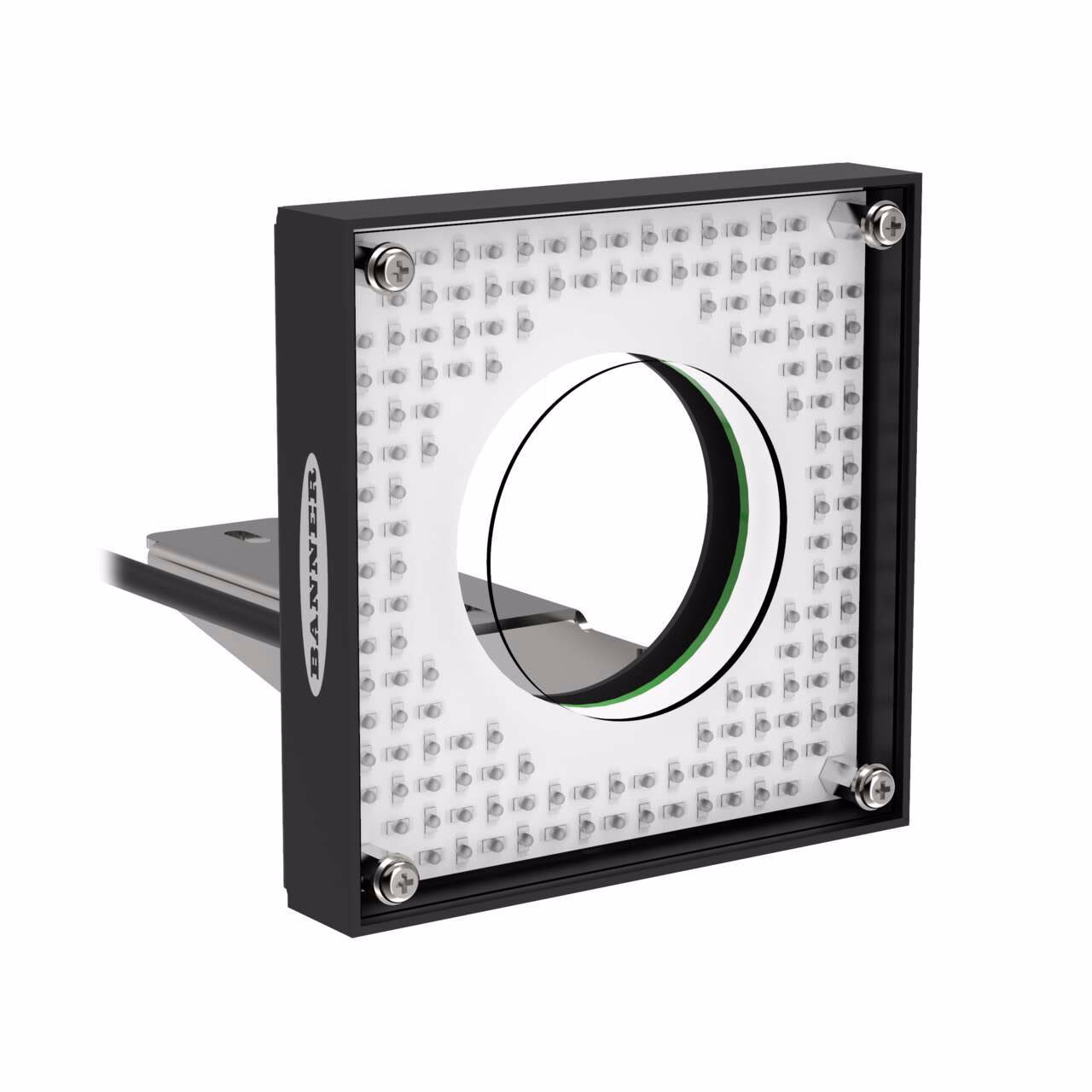

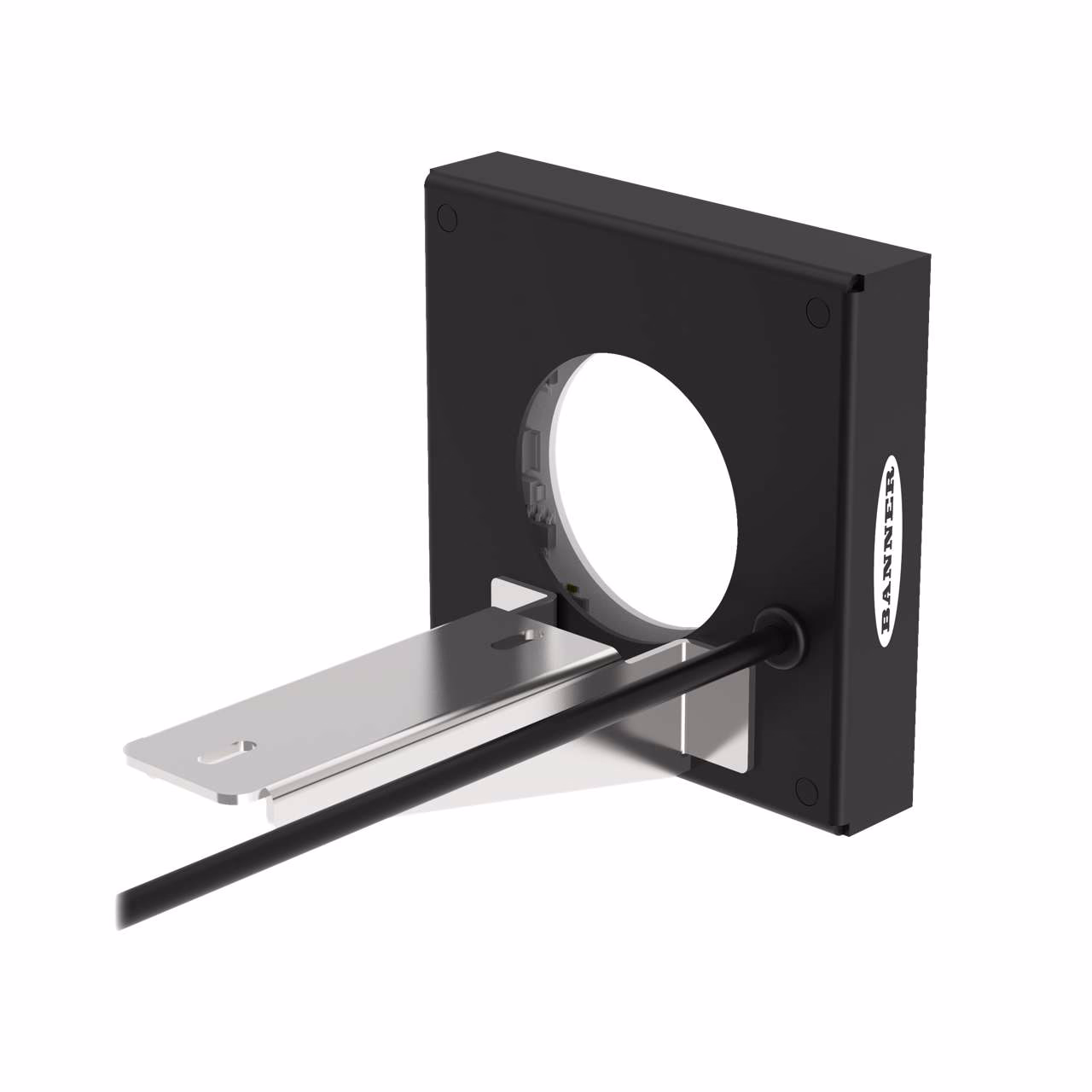

PresencePLUS 80 x 80 mm Ring Light
Visible White LED 24 V dc
0.3 m (1 ft) 3-pin M8 Pigtail QD
Connects to P4
| Color | White |
|---|---|
| Color Technology | Standard LED |
| Connection | Pigtail QD |
| QD Type/Cable Length | 300 mm; M8 |
| Window Material | Acrylic |
| Device type | Ring Light |
| Feature | Quick Disconnect |
| Housing Style | Rectangular |
| Item Status | RELEASED |
| Number of Conductors | 3 |
| Physical Dimensions (LxWxH or DxH mm) | 87.3 x 87.3 x 35.5 |
| Power Good Output | DC |
| Receptacle housing material B | Low-Carbon Steel |
| High Temperature (up to 100 C) | 50 |
| Max Current Color (mA) | 250 |
| Voltage supply connection | Pigtail QD |
Description
PresencePLUS 80 x 80 mm Ring Light
Visible White LED 24 V dc
0.3 m (1 ft) 3-pin M8 Pigtail QD
Connects to P4
