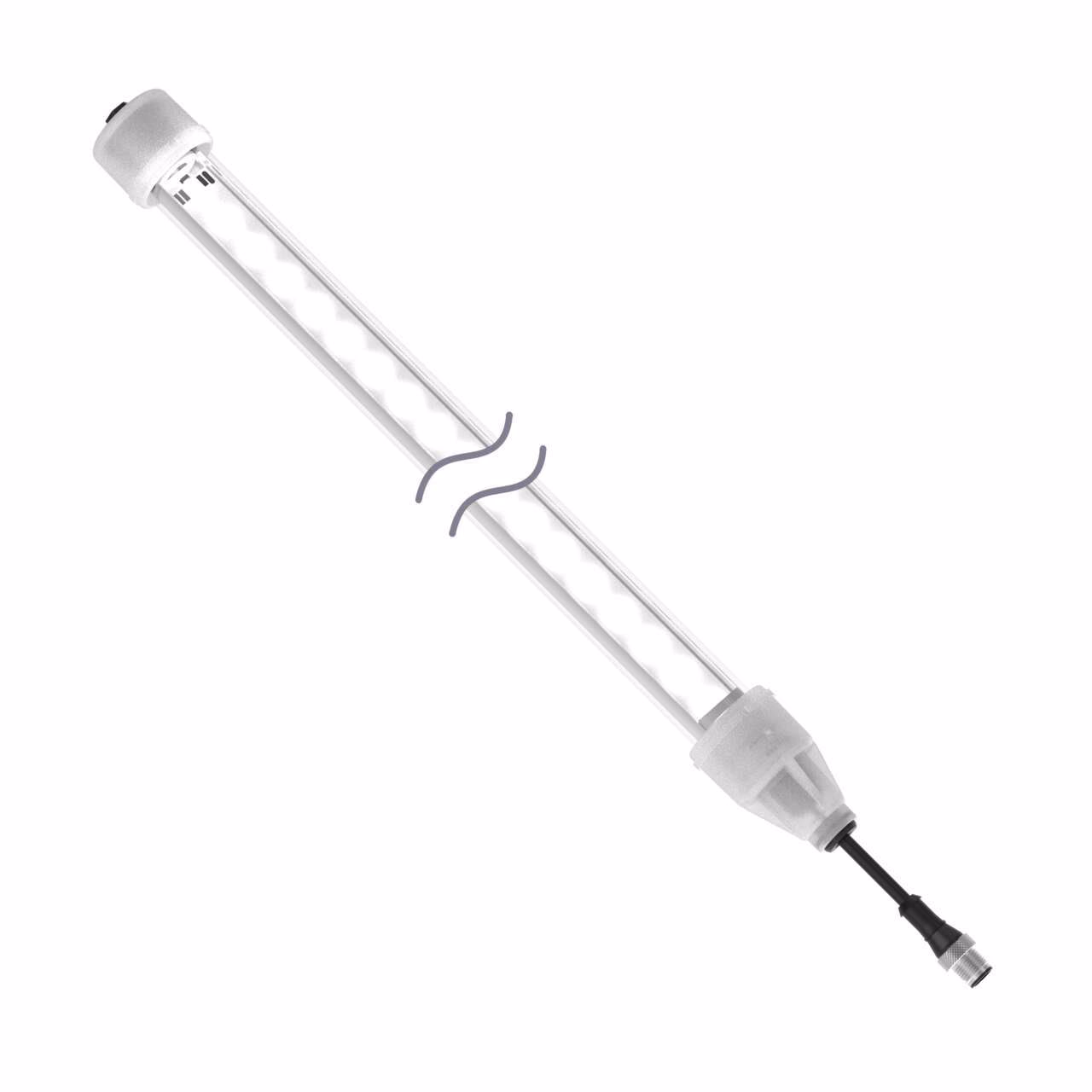

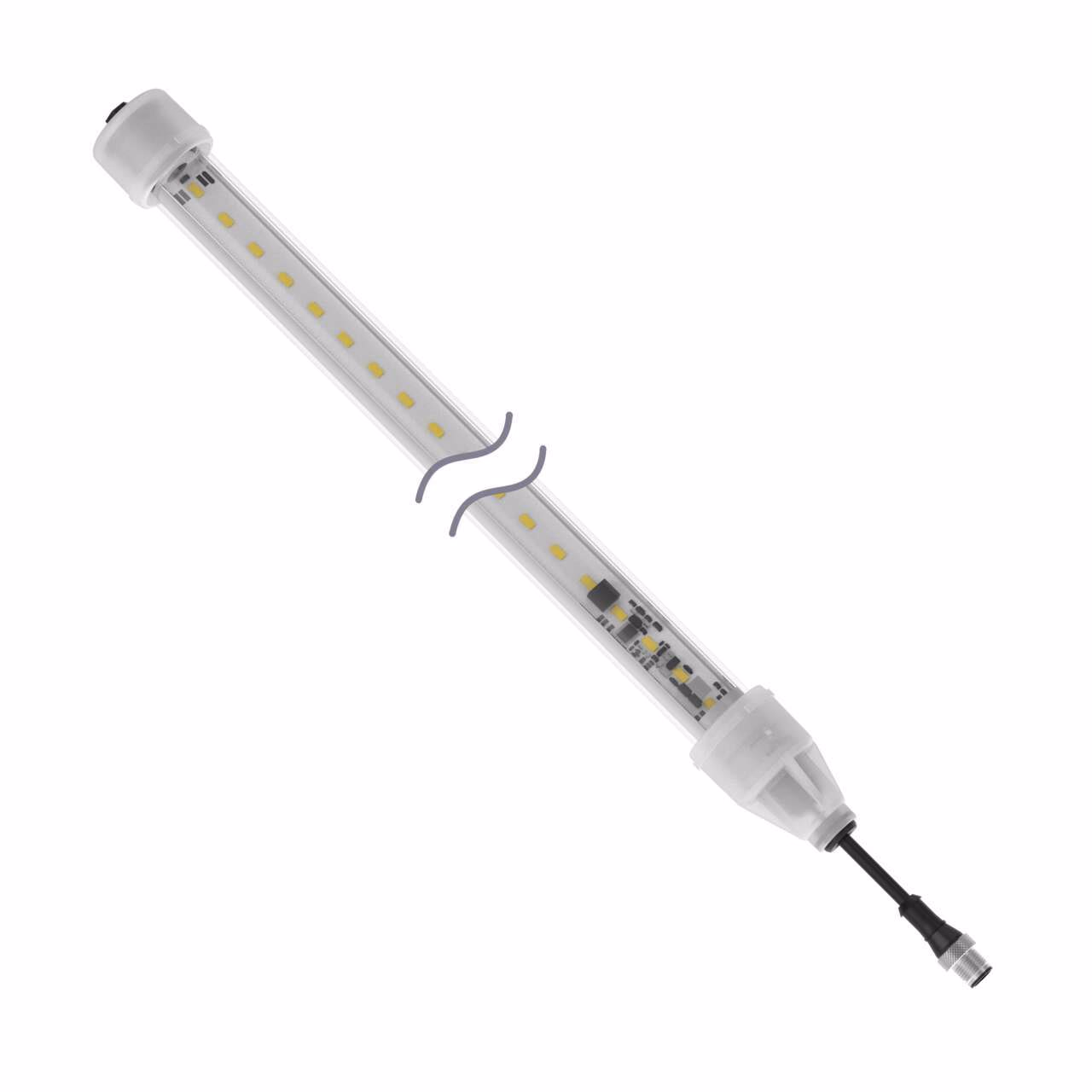

RLS27 Rugged Strip Light – Banner – RLS27XW2270SQP
RLS27 Light Strip: Clear Window; 2270 mm
24 V dc; IP67 IP69K
White; Non-Cascadable
150 mm (6 in) 4-pin M12 Pigtail QD
| Color Technology | Standard LED |
|---|---|
| Connection | Pigtail QD |
| Dimming Option | High-Low-Off |
| Feature: Audible | No |
| Primary Window Material | Polycarbonate Clear |
| Animation Option 1 | Solid On |
| Animation Option 2 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Daylight White |
| EPLAN Original Sent Date | 10/23/2023 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Chemical Resistant, Quick Disconnect, Washdown Rated |
| Housing Style | Linear Strip |
| Indication | No |
| Item Status | RELEASED |
| Light type | Yes |
| Lumens Color 1 | 6400.0 |
| Mounting | No Thread |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 4.0 |
| Operating voltage | 24 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 27.8 x 2347.0 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 70.0 |
| Product Size (mm) | 27 |
| Max Current Color (mA) | 6400.0 |
| Storage Temp (C) | -40 to 70 |
| Illuminated Length (LxWxH mm) | 2270.0 |
Description
RLS27 Light Strip: Clear Window; 2270 mm
24 V dc; IP67 IP69K
White; Non-Cascadable
150 mm (6 in) 4-pin M12 Pigtail QD
